Over-voltage Protection Module to handle up to 5.5 V using standard process 3.3 V devices - High temperature (Grade 1, Tj=150°)
Dolphin Design provides a Power Management IPs platform, toward three objectives: To standardize and ease Power Regulation Networ…
Overview
Dolphin Design provides a complete Power Management IPs platform, toward three objectives:
To standardize and ease Power Regulation Network integration
To enable diverse optimizations
To reduce Time-to-Market
To avoid expensive solutions, such as additional mask layer or external regulators, the library features a cost effective alternative with a set of Over-voltage Protection Modules (OPM). These companions for regulators enable over-voltage operation while using standard process 1.8 V devices.
The OPM-Angel-AR-LP is optimized to be used for retention mode in low power applications.
Applicable to automotive, industrial.
Designed for extended mission profile (aging report available)
To standardize and ease Power Regulation Network integration
To enable diverse optimizations
To reduce Time-to-Market
To avoid expensive solutions, such as additional mask layer or external regulators, the library features a cost effective alternative with a set of Over-voltage Protection Modules (OPM). These companions for regulators enable over-voltage operation while using standard process 1.8 V devices.
The OPM-Angel-AR-LP is optimized to be used for retention mode in low power applications.
Applicable to automotive, industrial.
Designed for extended mission profile (aging report available)
Key features
- Over-voltage protection biasing for embedded regulators
- Avoids expensive solutions while enabling direct battery connection.
- Built-in over-voltage protection (up to 5.5 V) using 3.3 V transistors
- Low-leakage for SoC retention mode
- Embedded Level Shifters
Block Diagram

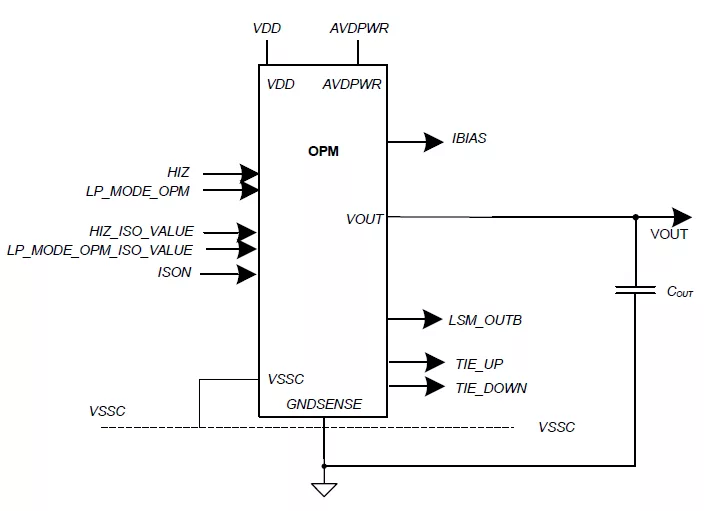

OPM-Angel-AR-LS-1.9-5.5-2.6.03_TSMC_40_uLPeF block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 40nm | ULP eFlash | Pre-Silicon |
