Vendor: Dolphin Semiconductor Category: ESD Protection

Over-voltage Protection Module to handle Over-voltage operation (up to 5.5 V) while using standard process 3.3 V devices

Dolphin Design provides a Power Management IPs platform, toward three objectives: To standardize and ease Power Regulation Networ…

TSMC 40nm ULP eFlash Pre-Silicon View all specifications

Overview

Dolphin Design provides a complete Power Management IPs platform, toward three objectives:
To standardize and ease Power Regulation Network integration
To enable diverse optimizations
To reduce Time-to-Market
To avoid expensive solutions, such as additional mask layer or external regulators, the library features a cost effective alternative with a set of Over-voltage Protection Modules (OPM). These companions for regulators enable over-voltage operation while using standard process 1.8 V devices.
The OPM-Angel-AR-LP is optimized to be used for retention mode in low power applications.

Key features

  • Over-voltage protection biasing for embedded regulators
  • Avoids expensive solutions while enabling direct battery connection.
  • Built-in over-voltage protection (up to 5.5 V) using 3.3 V transistors
  • Low-leakage for SoC retention mode
  • Embedded Level Shifters

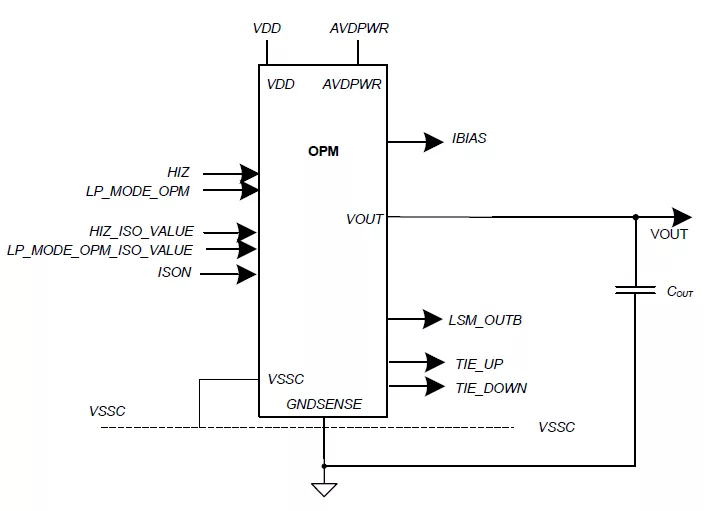

Block Diagram

OPM-Angel-AR-LS-1.9-5.5-2.6.03_TSMC_40_uLP block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 40nm ULP eFlash Pre-Silicon

Specifications

Identity

Part Number
OPM-Angel-AR-LS-1.9-5.5-2.6.03_TSMC_40_uLP
Vendor
Dolphin Semiconductor
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
