LIN Bus Master/Slave Controller
The LIN-CTRL core is a communication controller that transmits and receives LIN frames to perform serial communication according …
Overview
The LIN-CTRL core is a communication controller that transmits and receives complete LIN frames to perform serial communication according to the LIN Protocol Specification. It can be configured at run-time to operate either as a master or as a slave and supports versions 1.3, 2.0, 2.1, and 2.2 of the LIN protocol. The message transfers can be controlled via a microcontroller interface and a LIN transceiver is needed for the connection to the LIN bus.
The LIN-CTRL core is a microcode-free design developed for reuse in ASIC and FPGA implementations. The scan-ready design is strictly synchronous with positive-edge clocking and no internal tri-states. The robustly verified core has been production-proven multiple times.
The LIN controller core is available in two versions: Standard, and Safety-Enhanced. The Safety-Enhanced version implements ECC for SRAMs protection and uses spatial redundancy for protecting the inner logic of the core. The Safety-Enhanced versions are certified as ISO-26262 ASIL-D Ready.
Key features
- Support of LIN specifications 2.0, 2.1, and 2.2A
- Backward compatible with LIN specification 1.3
- Run-time configurable master or slave operation
- Programmable data rate between 1 Kbit/s and 20 Kbit/s (for master)
- Automatic bit-rate detection (for slave)
- 8-byte data buffer
- Optional clock and input synchronization for slave operation
- Generic 8-bit microcontroller interface
- Wrappers converting the generic microcontroller interface to AMBA APB or AHB are offered with the core
- Fully synchronous design, available in Verilog, completely synthesizable
- The LIN Controller synthesizes to approximate 4,400 to 5,900 gates depending on the technology
- Robustly verified and multiple times production-proven IP core
- Safety-Enhanced Version (optional)
- Certified as ISO-26262 ASIL-D Ready
- Implements ECC for SRAM and spatial redundancy – DMR or TMR for inner logic protection, including optional lockstep operation

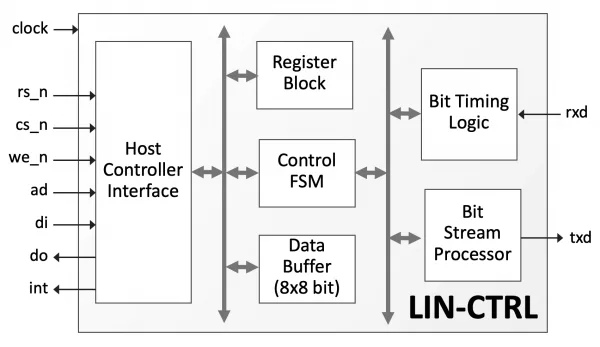

Block Diagram
LIN-CTRL block diagram
Specifications
Identity
Part Number
LIN-CTRL
Vendor
CAST
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
