H.264 Video Over IP – HD Decoder Subsystem

This Video Over IP Subsystem integrates H.264 Decompression, Transport Stream and RTP/UDP/IP de-capsulation to enable the rapid d…

Contact Provider Request Datasheet
H.264 / AVC View all specifications

Overview

This Video Over IP Subsystem integrates H.264 Decompression, Transport Stream and RTP/UDP/IP de-capsulation to enable the rapid development of complete video streaming products. Hardware reference designs and customization services complete the solution.

The subsystem uses the Low-Latency AVC/H.264 Baseline Profile Decoder Core and the RTP and UDPIP, hardware stacks available from CAST. Flexible interfaces allow easy integration of video, memory, and network controllers, and AXI4-Lite slave interfaces allow a host processor to access all control and status registers. An optional custom logic module allows standalone, processor-free operation and provides access to control and status registers via UDP packets. Video and stream data are transferred among the subsystem’s modules using AXI-Stream, making removing or adding modules straightforward.

The subsystem can decode Constraint Baseline Profile streams, encapsulated in RTP or plain UDP and features, sub-frame latency (no frame buffers are implemented).

Key features

  • Ultra-Low Latency H.264 Video Decompression
    • Constraint Baseline Profile
    • RTP and UDPIP Decapsulation
    • Sub-frame latency capable
  • Host interface via AXi4-Lite or processor-free UDP-controlled operation
  • AXI4-ST bus for Video & Stream data
  • Supports HD – 720p30/60 and Full-HD – 1080p30
  • Customization Options
    • Integration with Video-Outn Controllers (e.g., DVI, HDMI, MIPI-CSI, or SDI)
    • Integration with IP-based MAC controllers (e.g., Ethernet or 802.11 WiFi)
  • Reference FPGA Designs
    • Drive display via HDMI, on Xilinx or Intel boards
    • Can work with CAST’s H.264 Encoder Subsystem Reference Designs

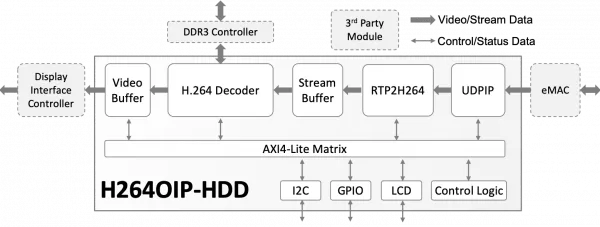

Block Diagram

H264OIP-HDD block diagram

Specifications

Identity

Part Number
H264OIP-HDD
Vendor
CAST
Type
Silicon IP

Compute

Codec Standard
H.264 / AVC

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

CAST
HQ: USA
Contact CAST
