Vendor: Comcores Category: Ethernet

Ethernet Controller

ASIC proven high-performance, feature-rich network interface solution designed to deliver reliable, low-latency Ethernet connecti…

Overview

ASIC proven high-performance, feature-rich network interface solution designed to deliver reliable, low-latency Ethernet connectivity

The Ethernet Controller is an ASIC proven high-performance, feature-rich network interface solution designed to deliver reliable, low-latency Ethernet connectivity across a broad range of embedded and enterprise applications. Comcores offers controllers ranging from 10M to 800G enabling seamless integration into systems requiring Ethernet connectivity.

Designed for scalability, the controller is available with single or multi-port configurations and is fully compliant with IEEE Ethernet standards, ensuring interoperability and long-term product viability.

Optimized for low power and high throughput, the controller supports advanced networking features including IEEE 802.1AS time synchronization, VLAN tagging, and optional MACsec encryption. With flexible host interface options (e.g., PCIe, RGMII, SPI), integrated DMA engines, and support for hardware timestamping, the Ethernet controller ensures efficient packet processing. Precise timing for time-sensitive applications such as TSN, industrial automation, automotive Ethernet, and audio/video streaming is supported as well.

Key features

Standards Compliant Ethernet Support

  • IEEE 802.3 compliant (10/100/1000 Mbps / 2.5G / 10G, as applicable)
  • Full-duplex and half-duplex operation
  • Auto-negotiation and flow control (IEEE 802.3x)

Advanced Time Synchronization

  • IEEE 802.1AS (gPTP) support for time-sensitive networking (TSN)
  • IEEE 1588v2 Precision Time Protocol (PTP) hardware timestamping
  • Sub-microsecond synchronization accuracy

Low-Latency, High-Performance Architecture

  • Integrated DMA engine for zero-copy packet transfer
  • Large, configurable TX/RX buffers
  • Low CPU utilization via interrupt coalescing and offloads

Security and Reliability

  • Optional MACsec (IEEE 802.1AE) hardware encryption
  • Packet filtering and VLAN tagging (IEEE 802.1Q)
  • Error detection, correction, and CRC offloading

Flexible Host Interface Options

  • PCIe x1/x2/x4, RGMII, RMII, SGMII, or SPI
  • Register-compatible software interface with legacy and modern drivers

Scalable and Configurable

  • Available in 1/2/4-port configurations
  • Industrial temperature range options
  • Compact footprint for embedded and space-constrained applications

Comprehensive Software Support

  • Linux, Windows, and RTOS driver packages
  • Open-source and customizable reference drivers
  • Support for TSN and AVB frameworks

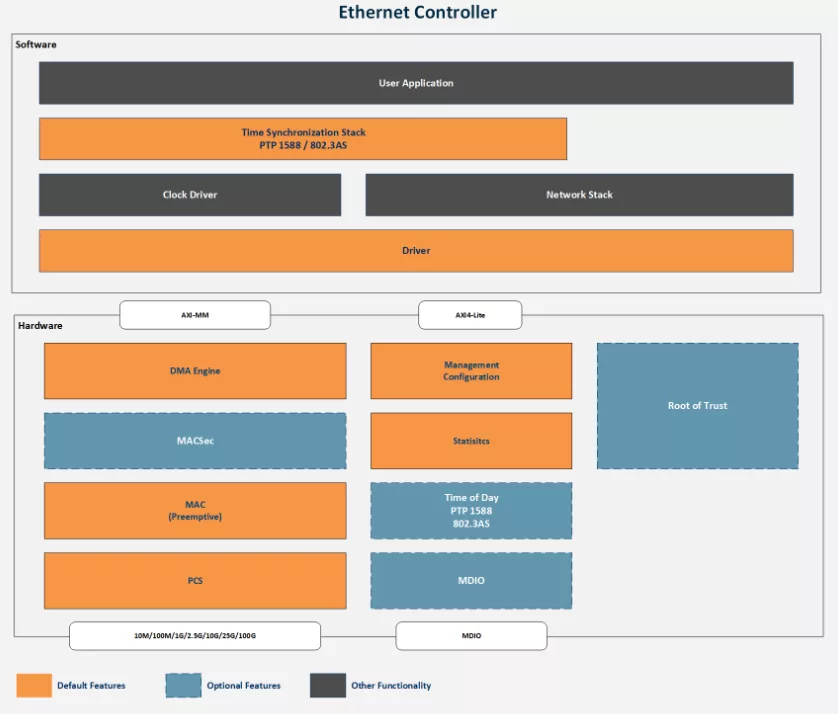

Block Diagram

Ethernet Controller block diagram

Applications

  • Automotive Ethernet (AVB/TSN)
  • Industrial automation and control
  • Professional audio/video systems
  • 5G fronthaul/backhaul synchronization
  • Data center TSN and deterministic networking
  • Cloud computing and high-performance networking

What’s Included?

The IP Core can be delivered in Source code or Encrypted format. The following deliverables will be provided with the IP Core license:

  • Solid documentation, including User Manual and Release Note
  • Simulation Environment, including Simple Testbed, Test case and Test Script
  • Programming Register Specification
  • Timing Constraints in Synopsys SDC format
  • Access to support system and direct support from Comcores Engineers
  • Synopsys SGDC Files (optional)
  • Synopsys Lint, CDC and Waivers (optional)

Specifications

Identity

Part Number
Ethernet Controller
Vendor
Comcores
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Comcores
HQ: Denmark

Learn more about Ethernet IP core

What Makes Ethernet IP Truly Automotive-Grade

This blog examines what separates truly automotive-grade Ethernet IP from generic implementations across functional safety, time-sensitive networking, security, observability, lifecycle management, and the integration disciplines that only become visible once a program is deep into development.

How Time Sensitive Networking powers the Software Defined Vehicle

Software-Defined Vehicles (SDVs) are turning cars into distributed real-time computing platforms. Instead of dozens of standalone ECUs connected by a tangle of legacy field buses, we now see zonal controllers aggregating local I/O, centralized compute platforms running safety, mission critical software, and a service-oriented middleware layer stretching across the vehicle.

Automotive Ethernet with Comcores – Safety, Quality and ASIL certification of IP

In today’s automotive industry, safety and reliability are non-negotiable. With the increasing complexity of electronic systems in modern vehicles, ensuring compliance with ISO 26262 and Automotive Safety Integrity Level (ASIL) requirements is a demanding aspect of development. At Comcores, we embrace these challenges head-on, combining rigorous processes with a strong commitment to product quality.

What is TSN?

TSN, or Time-Sensitive Networking, is a technology based on the IEEE 802.1Q standard. It has evolved from the Ethernet technology currently used to carry all types of traffic, for which ethernet was not originally intended, such as multiple data flows with different timing requirements, commonly found in Audio Video Bridging (AVB), automotive and industrial automation applications.

Frequently asked questions about Ethernet IP cores

What is Ethernet Controller?

Ethernet Controller is a Ethernet IP core from Comcores listed on Semi IP Hub.

How should engineers evaluate this Ethernet?

Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this Ethernet IP.

Can this semiconductor IP be compared with similar products?

Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.

×
