CXS c/d/Lite Verification IP

Truechip's CXS Verification IP provides an effective & efficient way to verify CXS ON Chip or OFF Chip interface. Truechip's CXS VIP is fully compliant with standard AMBA® CXS Version A, B, C and D specifications from ARM. This VIP is a light weight VIP with easy plug-and-play interface so that there is no hit on the design cycle time.

• Compliant with the CXS Version A, B, C and D specification
• Verification IP configurable as CXS ON-CHIP and OFF CHIP Interconnect.
• Support for Mandatory and Optional Signals.
• Support for CXS Interface Checking Signals.
• Support for variable data flit width (8...2048).
• Support for Interface control with Explicit Credit Return.
• Support for CXS Credit exchange mechanism.
• Support for randomization and user controllability in flit packing.
• Provides a comprehensive user API (callbacks).
• Built in Coverage analysis
• Exhaustive set of assertions
• Support for Packetless Interface
• Support for CXS Lite
• Support for user specific information (upto 128 bits) per flit with CXS_USER
• Multi Node Network support using Source and Target ID
• Support for 4 and 16 Byte aligned packet positioning options (CXS_START_ALIGNMENT)

• Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
• Unique development methodology to ensure highest levels of quality
• Availability of Compliance & Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and cover points with connectivity example for all the components
• Consistency of interface, installation, operation and documentation across all our VIPs
• Provide complete solution and easy integration in IP and SoC environment

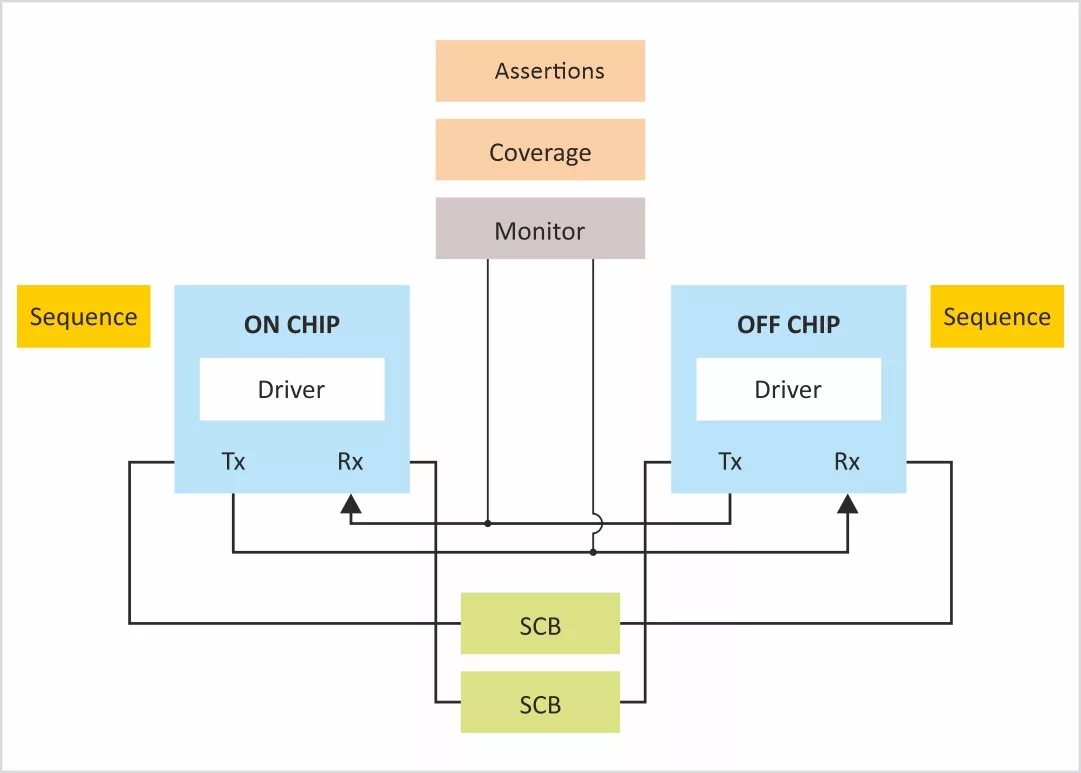

• CXS ON/OFF Chip BFM
• CXS Monitor and Scoreboard
• Test Environment & Test Suite :
  • Basic and Directed Protocol Tests
  • Random Tests
  • Error Scenario Tests
  • Assertions & Coverage Tests
  • Compliance Tests (if applicable)
