Vendor: Signature IP Corporation Category: Network-On-Chip

Coherent Network-on-chip (NoC) IP

UCIe D2D · CHI Rev E.b · Mesh & Ring · iNoCulator-generated RTL

Contact Provider Request Datasheet

Overview

The central coherent interconnect fabric for CPUs, AI accelerators, and HBM controllers. CHI Rev E.b compliant. RTL generated by iNoCulator from your PPA targets.

Key specifications

Protocol CHI Rev E.b
Topology Mesh and Ring
RTL source iNoCulator-generated
Sign-off Siemens Questa
Processor IF Arm + RISC-V
Deployment Compute chiplet

Technical details

Master types RN-F · RN-I · RN-D
Slave nodes HN-F · HN-I · SN-F
QoS Configurable per port
Bandwidth Target-driven by iNoCulator
Latency Configurable hops
Verification SystemC + QEMU flows

Key features

  • CHI Rev E.b protocol
  • Mesh and ring topologies
  • Configurable bandwidth & QoS
  • iNoCulator RTL generation
  • Siemens Questa sign-off

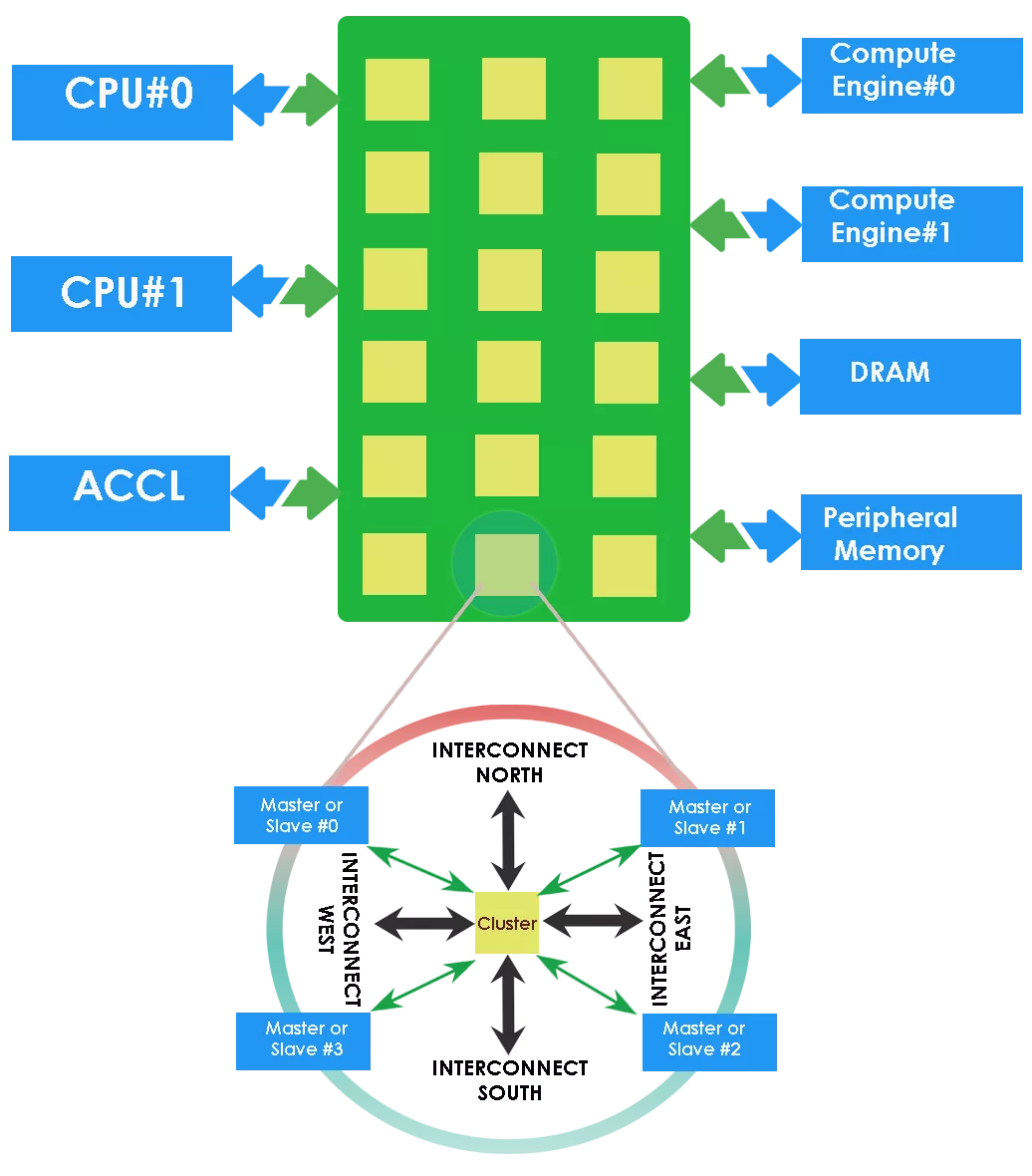

Block Diagram

Click to open fullscreen

Specifications

Identity

Part Number
C-NoC
Vendor
Signature IP Corporation
Type
Silicon IP

Provider

Contact Signature IP Corporation
