6mA Voltage Buffer - X-FAB XT018
6 mA Unity Gain Buffer with 6.5 MHz Gain Bandwidth
Overview
The TS_VBUFF_6mA_X8 is a unity gain buffer which has a DC gain of 110dB and a unity gain bandwidth of 6.5MHz. It can source a current up to 6.5mA and sink a current up to 4.5mA. The circuit features an Enable signal turning on/off the buffer. The bias current of the circuit is 2uA supplied for an external biasing circuit. The maximum current consumption of the circuit is 6.5mA and it is supplied by a 3.3V supply voltage.
Technology: X-FAB XT018-0.18µm BCD-on-SOI CMOS
OPERATING CONDITIONS
| Parameters | Values |
| Junction temperature range | -40°C to 150°C |
| Supply voltage | 3.2V to 3.4V |
SPECIFICATION
| Parameters | Values |
| Voltage gain (AV) | 110 dB max |
| Input offset voltage (VOS) | -4.4 to +4.4 mV |
| Unity gain bandwidth | 11.4 MHz max |
| Buffer Area | 0.0128 mm² |

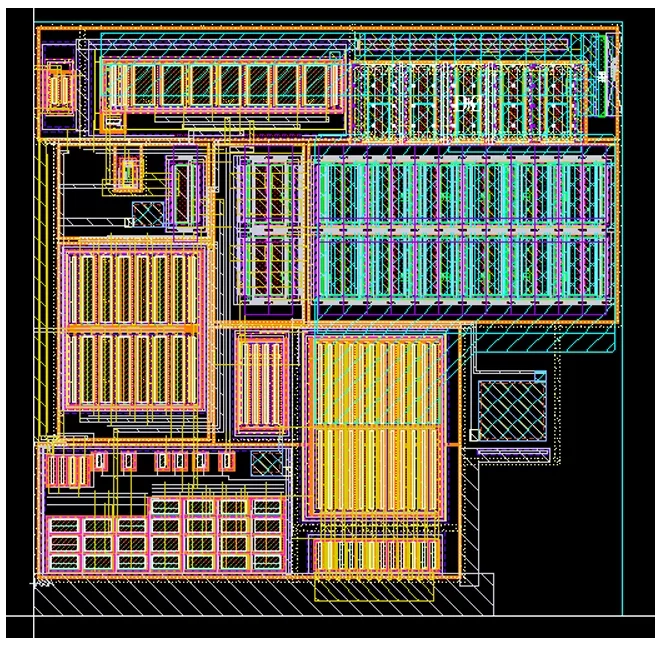

Block Diagram
Click to open fullscreen
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| X-FAB | 180nm | XT018 | Available on request |
