54 - 67 GHz Low Noise Amplifier
SiGe:C HBT MMIC
Overview
The TS-LNA-60 is a Low Noise Amplifier intended for use in 60 GHz applications. Power consumption of only 60 mW is suitable for use in battery operated devices. External component count is significantly reduced by internal 100 Ohm matching, AC coupling and by eliminating the need for negative bias voltages.
Electrical specifications, TA=25 °C, 50 Ohm system, Measured with 1:2 Balun, VCC=2.7V
| Parameter | Min | Typ. | Max | Units |
| Frequency range (1 dB Bandwidth) | 57 – 67 | GHz | ||
| Input Return Loss | -12 | dB | ||
| Output Return Loss | -8 | dB | ||
| Gain | 24.5 | dB | ||
| Noise Figure | 5.3 | 5.9 | dB | |
| Output Power for 1 dB Compression | -1 | dBm | ||
| Supply current | 22 | mA | ||
Key features
- Gain: 24.5 dB
- Differential Inputs/Outputs Bandwidth (1 dB): 57 – 67 GHz
- Noise Figure: 5.5 dB
- Internally Matched to 100 Ohm
- Supply voltage: +2.7 V
- Die Size: 0.954 x 0.954 mm2

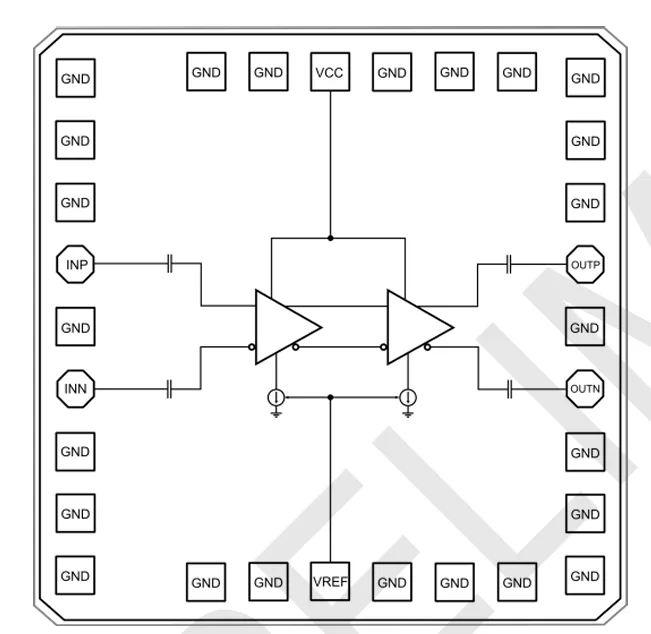

Block Diagram
Click to open fullscreen
Applications
Low Noise Amplifier 54 - 67 GHz for use in:
- Short Range High Capacity Links,
- Mobile Terminals,
- Battery Operated Devices.
