10M/100M/1G/10G/25G Advanced Ethernet TSN Switch IP

versatile, high performance Ethernet Switch with an extensive set of QoS features and statistics.

Contact Provider Request Datasheet

Overview

Highly versatile, high performance advanced Ethernet Switch with an extensive set of QoS features and statistics.

The 10M/100M/1G/10G/25G/100G Ethernet Switching IP is an advanced Ethernet TSN Switch IP with an extensive set of QoS features and statistics. The Ethernet TSN Switch IP supports up to 8 queues, classification, VLAN 802.1Q, multicast and broadcast as well as IEEE 1588 transparent clock. Each port provides a native interface for Ethernet PHY devices. IEEE 802.1 Protocol Implementation Conformance Statement is available, specifying exact feature-set.

The Ethernet TSN Switch IP provides support for key TSN features including IEEE 802.1Qbu and 802.3br Frame preemption, 802.1Qbv Time aware shaping, 802.1Qav Credit based shaping, 802.1Qci Per-Stream Filtering and Policing, and 802.1CB Frame replication and elimination for reliability. This enables the use of the IP in high speed time-critical applications.

Key features

Delivers Performance

  • Up to 800Gbps switching capacity
  • Parallel Lookup Engines enable high packet processing rate
  • CPU packet port up to 25 Gbps
  • QoS features including classification, queuing and scheduling
  • Supports VLAN, Supports IGMP snooping
  • Supports Rapid Spanning Tree Protocol, Supports DSA
  • IEEE 1588 functionality including both transparent and boundary clock
  • Frame Preemption, Time Aware Shaping, Credit Based Shaping, Per-Stream
  • Filtering and Policing, Frame Replication and Elimination for Reliability

Highly Configurable

  • 10M, 100M, 1G, 10G, 25G and 100G ports configurable at compile time
  • TSN features can be enabled/disabled independently
  • Comes with supporting Software

Easy to Use

  • Solid documentation including user manual
  • Default configuration enables drop-in deployment

Silicon Agnostic

  • Designed in Verilog and targeting both ASICs and FPGAs

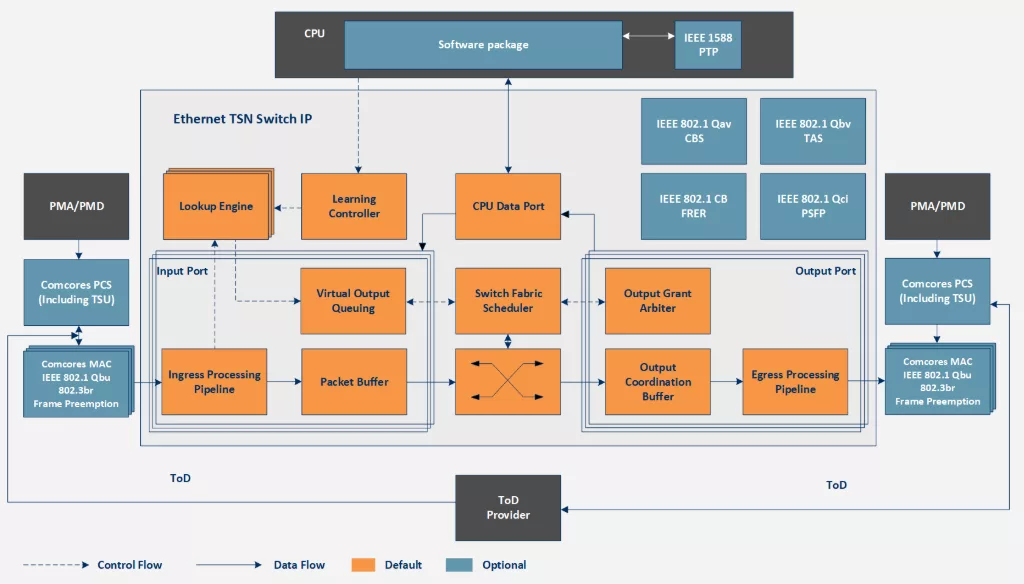

Block Diagram

10M/100M/1G/10G/25G Advanced Ethernet TSN Switch IP block diagram

What’s Included?

The IP Core can be delivered in Source code or Encrypted format. The following deliverables will be provided with the IP Core license:

  • Solid documentation, including User Manual and Release Note
  • Simulation Environment, including Simple Testbed, Test case and Test Script
  • Programming Register Specification
  • Timing Constraints in Synopsys SDC format
  • Access to support system and direct support from Comcores Engineers
  • Synopsys SGDC Files (optional)
  • Synopsys Lint, CDC and Waivers (optional)

Specifications

Identity

Part Number
10M/100M/1G/10G/25G Advanced Ethernet TSN Switch IP
Vendor
Comcores
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Comcores
HQ: Denmark
Contact Comcores
