V-by-One Verification IP

Truechip's V-by-One Verification IP provides an effective & efficient way to verify ASIC/FPGA and SoC components interfacing with the V-by-One HS/HS Plus THine display interface. Truechip's V-by-One VIP is fully compliant with the V-by-One standard. Supports THine V-by-One HS, HS Plus . This lightweight VIP provides an easy plug-and-play interface with minimal impact on design and simulation time.

• Fully compliant with V-by-One HS / HS Plus THine Specification.
• Supports V-by-One HS, HS Plus THine Protocol features.
• Supports Full HD, 4K and 8K configurations.
• Supports 18 (HS),24,30,36 (HS and HS Plus) bit color depths.
• Supports up to 32 lanes in HS and up to 64 lanes in HS Plus.
• Supports RGB, YCbCr444,YCbCr422,RGBW,RGBY
• Supports 3 Byte mode, 4 Byte mode, and 5 Byte Mode.
• Supports link rate up to 4Gbps/lane in V-by-One HS and up to 8Gbps/lane in V-by-One HS Plus.
  • Supports scalable lane configurations.
  • Supports high-speed differential serial interface.
  • Supports robust link initialization and synchronization.
• Supports configurable lane rates as per protocol version.
• Supports CDR Lock pattern and ALN Training Pattern.
• Supports protocol framing and encoding verification.
• Supports configurable protocol modes.
• Supports link initialization sequences.
  • Supports training and link establishment
  • Supports protocol error detection and recovery.
• Supports high-resolution display verification.
  • Supports scalable bandwidth verification
• Supports protocol operation across HS, HS Plus
  • Supports multiple display resolutions and frame rates.
  • Supports interoperability verification
• Supports end-to-end video transport verification
• Supports configurable panel interface verification
• Supports user configurable traffic generation
• Supports complete protocol operation
• Supports callback mechanism for user control
• Supports Dynamic as well as Static Error Injection scenarios.
• Strong Protocol Monitor with real time exhaustive, programmable checks.
• On-the-fly protocol checking using protocol check functions, static and dynamic assertions.
• Built-in coverage analysis Graphical analyzer to show transactions for easy debugging.

• Available in native System Verilog (UVM/OVM/ VMM) and Verilog
• Unique development methodology to ensure the highest levels of quality
• Availability of Compliance & Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and coverage points with connectivity examples for all the components
• Consistency of interface, installation, operation, and documentation across all our VIPs
• Provide complete solutions and easy integration in IP and SoC environment

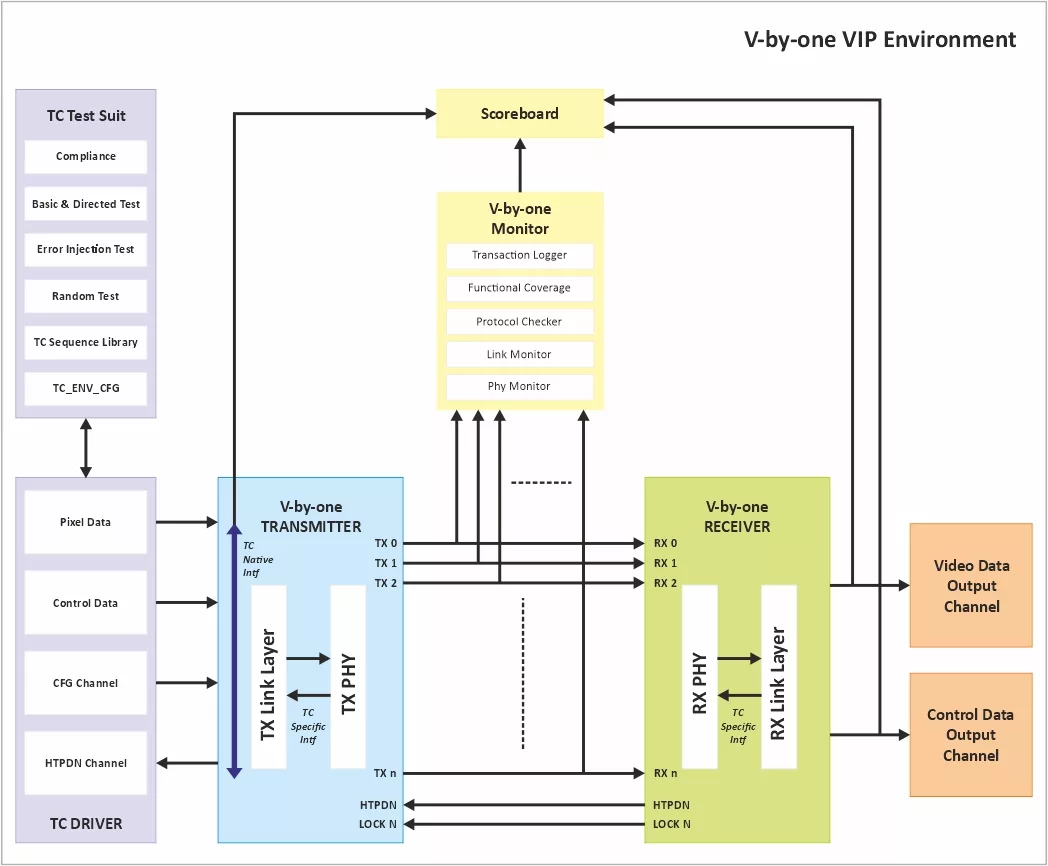

• V-by-One BFM's for
  • Transmitter Link Layer
  • Receiver Link Layer
  • Transmitter - Serializer (TX PHY)
  • Receiver –Deserializer (RX PHY)
• Availability of Compliance & Regression Test Suites
• Layered Monitor and Scoreboard.
• Test Environment and Test Suite:
  • Basic and Directed Protocol Tests.
  • Random Tests.
  • Error Scenario Tests.
  • Assertions & Cover Point Tests.
  • Compliance Test Suite.
  • User Test Suite.
• Integration guide, user manual, and release notes
• GUI analyzer to view simulation packet flow
