USB 2.0 Host/Device Transceiver With On-The-Go (OTG)

USB 2.0 HOST/DEVICE/OTG Transceiver is a fully integrated PHY Core which is a super-set of HOST and DEVICE PHY with High Speed (HS), Full-Speed (FS) and Low-Speed Transceivers integrated with On-The-Go Functionality and is compliant with the USB 2.0 Specification and latest Revision of the On The-Go and UTMI+ Specifications (UTMI+ Version 1.0 Level 3). It includes Data Pulsing, VBUS Pulsing, VBUS Comparators for Session Detection to support HNP (Host Negotiation Protocol) and SRP (Session Request Protocol), Clock/Data Recovery, on-chip PLL, Integrated & Calibrated Termination and Pull Up/Down Resistors with full Analog Transceiver functionality for the Complete USB 2.0 PHY as illustrated in the figure.

USB2 Host/Device/OTG transceiver has standard UTMI with SIE so that ASIC vendors are isolated from the high speed and analog circuitry associated with the transceiver, thus reducing the design risk and fastening the design cycle.

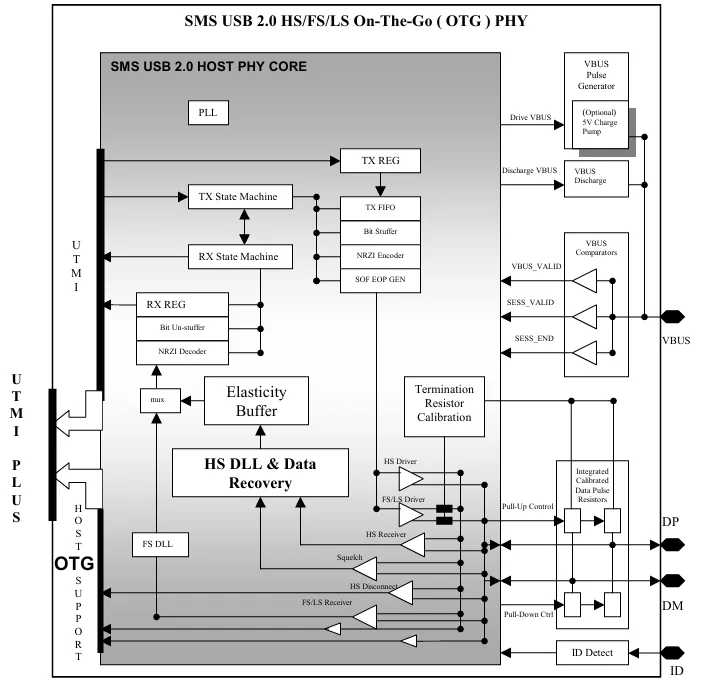

The core’s main blocks are clock/data recovery for FS/HS, PLL, transceiver state machines, data encoder/decoder and high-speed analog transceiver as can be seen in the main block diagram above.

• Fully compliant with latest USB 2.0
• Innovative technique to recover clock from 480 Mbps data.
• High frequency PLL.
• Advanced High-Speed Transmitter and Receiver.
• On The Go (OTG) Functionality
• Optional Charge Pump
• Support High Speed HS, Full Speed FS, Low Speed LS modes.
• Integrated/Calibrated/Switchable 1.5KOhm & 15KOhm resistors on DP, DM For HOST and OTG support in addition to Integrated/Calibrated Termination Resistors
• Proprietary Host and UTMI+ Support
