UALink 200G v1.0 Verification IP

Truechip's UALink 1.0 Verification IP provides an effective & efficient way to verify the components interfacing with the UALink interface of an ASIC/FPGA or SoC. Truechip's UALink VIP is fully compliant with the Standard UALink Version 1.0 specification from the UALink consortium. This VIP is a lightweight VIP with an easy plug-and-play interface, so that there is no hit on the design time and the simulation time.

• Fully compliant with the UALink V1.0 specification from the UALink consortium
• Supports the UPLI interface operating in both Originator and Completer device modes.
• Supports all defined request types, including Read, Write, AtomicR, and AtomicNR operations.
• Supports a fully credit-based flow control mechanism for all request types.
• Supports Transaction Layer (TL) Tx and Rx address cache synchronization.
• Supports compressed and uncompressed request and response formats at the Transaction Layer (TL).
• Supports FLIT-to-64B/66B encoding functionality.
• Supports Tx pacing, Rx rate adaptation, DL message service, FLIT packing, and link-level replay features.
• The PHY Layer (PL) is compliant with IEEE 802.3dj Ethernet PHY specifications.
• Supports link widths: x1, x2, and x4.
• Supports all link speeds:
  • 100G, 200G, and 400G with 100G per lane
  • 200G, 400G, and 800G with 200G per lane.
• Supports 1-way, 2-way, and 4-way codeword interleave modes.
• Supports lane bifurcation, enabling a port to be divided into multiple independent UALinks.
• Supports on-the-fly link speed and link width changes within a single test.
• Supports AES-GCM encryption and authentication.
• Supports RS-FEC RS(544,514) codeword encoding and decoding as per the Ethernet PHY specification.
• Supports Auto-Negotiation and Link Training (AN/LT) as defined in IEEE 802.3, without modification.
• Callback support in BFM to provide user control
• Supports Dynamic as well as Static Error Injection scenarios Strong Protocol Monitor with real time exhaustive, programmable checks
• Supports dynamically configurable modes
• On-the-fly protocol checking using protocol check functions, static and dynamic assertions
• Built in Coverage analysis.
• Graphical analyzer to show transactions for easy debugging

• Available in native System Verilog (UVM/OVM/ VMM) and Verilog
• Unique development methodology to ensure the highest levels of quality
• Availability of Compliance & Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and coverage points with connectivity example for all the components
• Consistency of interface, installation, operation, and documentation across all our VIPs
• Provide complete solution and easy integration in IP and SoC environment

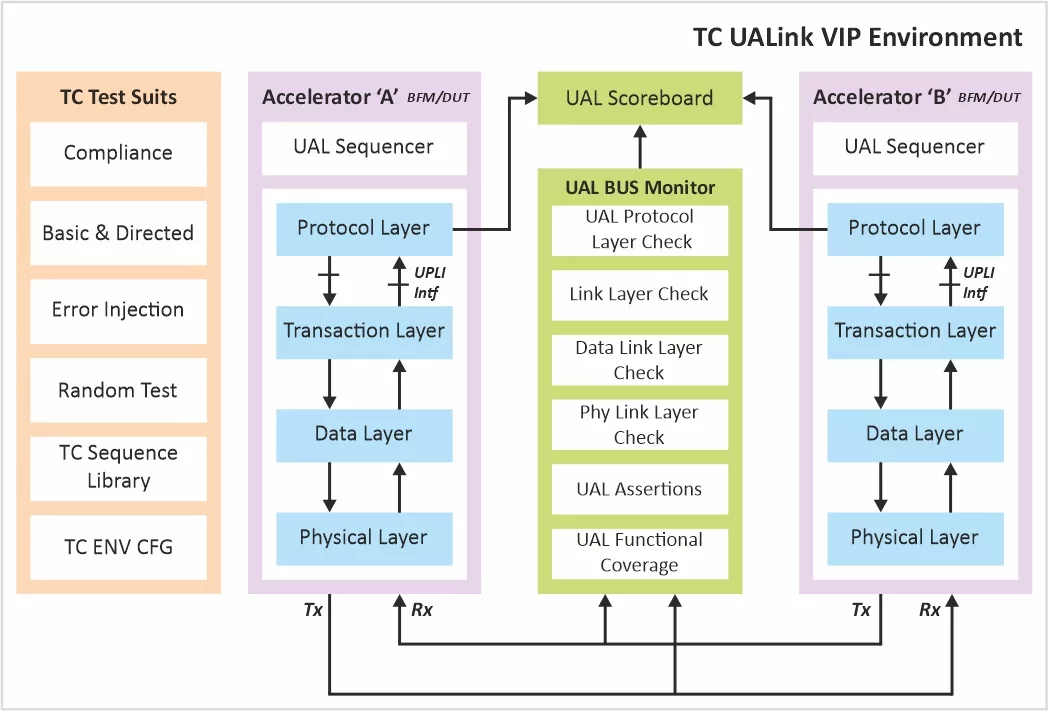

• UALink BFM's/Agents
  • Protocol Layer
  • Transaction Layer
  • Data Link Layer
  • Physical Layer
  • UALink Switch devices
• UALink Layered Monitors and Scoreboard
• Integration Guide, User Manual and Release Notes
• GUI analyser to view simulation packet flow
• Test Environment & Test Suite:
  • Basic and Directed Protocol Tests
  • Random Tests
  • Error Scenario Tests
  • Coverage Tests
  • User Test Suite
