Vendor: Sifive, Inc. Category: CPU

U74-MC Multicore: four U74 cores and one S76 core

The SiFIve U74-MC Standard Core is the world's highest performance RISC-V application processor, capable of supporting full-featu…

Contact Provider Request Datasheet

Overview

The SiFIve U74-MC Standard Core is the world's highest performance RISC-V application processor, capable of supporting full-featured operating systems such as Linux. The U74-MC has 4x 64-bit U74 cores and 1x 64-bit S7 core - providing high performance with hard real-time determinism.
This U74-MC is ideal for applications requiring high-throughput performance with real-time guarantees (e.g., Enterprise Storage, Wireless/Wireline Networking, 5G Baseband Processors, SLAM Processors, Sensor Fusion, etc.)

Key features

  • Fully-compliant with the RISC-V ISA specification
  • 4x RV64GC U74 Application Cores
    • 32KB L1 I-cache with ECC
    • 32KB L1 D-cache with ECC
    • 8 Region Physical Memory Protection
    • Sv39 Virtual Memory support with 38 Physical Address bits
  • 1x RV64IMAC S7 Monitor Core
    • 16KB L1 I-Cache with ECC
    • 8KB DTIM with ECC
    • 8 Region Physical Memory Protection
  • U74 and S7 cores are fully-coherent
  • Integrated 2MB L2 Cache with ECC
  • Real-time Capabilities
    • The L1 Instruction Cache and the L2 Cache can be configured into high-speed deterministic SRAMs
  • Debug with instruction trace
  • Benchmark Scores
    • 4.27/2.5 DMIPS/MHz (Best Effort/Legal)
    • 5.1 CoreMark/MHz

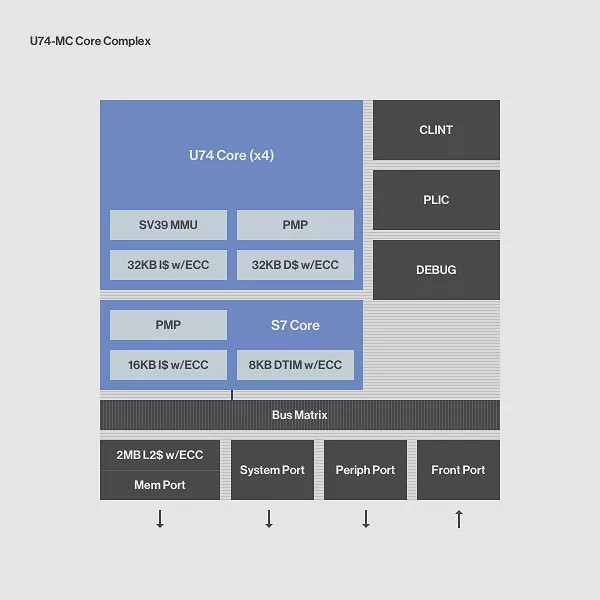

Block Diagram

U74-MC block diagram

What’s Included?

  • RTL Evaluation
  • Test Bench RTL
  • Software Development Kit
  • Documentation

Specifications

Identity

Part Number
U74-MC
Vendor
Sifive, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Sifive, Inc.
HQ: USA
Contact Sifive, Inc.
