U54 MC Multicore: four U54 cores and one S51 core

The SiFive U54-MC Standard Core is the world's first RISC-V application processor, capable of supporting full-featured operating …

Contact Provider Request Datasheet

Overview

The SiFive U54-MC Standard Core is the world's first RISC-V application processor, capable of supporting full-featured operating systems such as Linux.
The U54-MC has 4x 64-bit U5 cores and 1x 64-bit S5 core - providing high performance with maximum efficiency. This core is an ideal choice for low-cost Linux applications such as IoT nodes and gateways, storage, and networking.

Key features

  • Fully compliant with the RISC-V ISA specification
  • 4x RV64GC U54 Application Cores
    • 32KB L1 I-cache with ECC
    • 32KB L1 D-cache with ECC
    • 8 Region Physical Memory Protection
    • 48 Local Interrupts per core
    • Sv39 Virtual Memory support with 38 Physical Address bits
  • 1x RV64IMAC S51 Monitor Core
    • 16KB L1 I-Cache with ECC
    • 8KB DTIM with ECC
    • 8 Region Physical Memory Protection
    • 48 Local Interrupts
  • Fully Coherent TileLink Bus
  • Integrated 2MB L2 Cache with ECC
  • Real-time capabilities
    • Both the L1 Instruction Cache and the L2 Cache can be configured into high speed deterministic SRAMs
  • CLINT for multi-core timer and software interrupts
  • PLIC with support for up to 511 interrupts with 7 priority levels
  • Debug with instruction trace
  • U54 Performance
    • 2.87/1.7 DMIPS/MHz (Best Effort/Legal)
    • 2.75 CoreMark/MHz

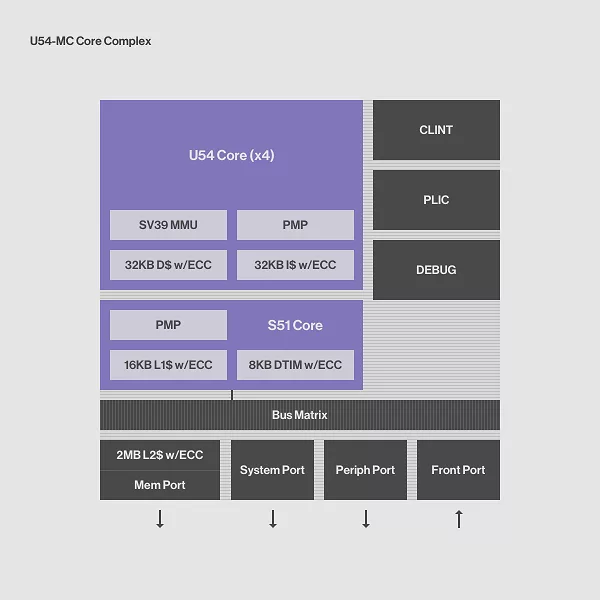

Block Diagram

U54-MC block diagram

Specifications

Identity

Part Number
U54-MC
Vendor
Sifive, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Sifive, Inc.
HQ: USA
