TCP/UDP/IP Network Protocol Accelerator Platform
Accelerate Network Protocols with FPGA TCP/UDP/IP Stack The German Fraunhofer Heinrich-Hertz-Institute (HHI) has partnered with M…
Overview
Accelerate Network Protocols with FPGA TCP/UDP/IP Stack
The German Fraunhofer Heinrich-Hertz-Institute (HHI) has partnered with MLE to market the proven network accelerators “TCP/IP & UDP Network Protocol Accelerator Platform (NPAP)”. This customizable solution enables high-bandwidth, low-latency communication solutions for FPGA- and ASIC-based systems for 1G / 2.5G / 5G / 10G / 25G / 40G / 50G / 100G Ethernet links.
MLE is a licensee of Fraunhofer HHI, and offers a range of technology services, sublicenses and business models compatible with customer’s ASIC or FPGA project settings, world-wide.
Key features
- Highly modular TCP/UDP/IP stack implementation in synthesizable HDL
- Full line rate of 70 Gbps or more in FPGA, 100 Gbps or more in ASIC
- 128-bit wide bi-directional data paths with streaming interfaces
- Multiple, parallel TCP engines for scalable processing
- Network Interface Card functionality with Bypass (optional)
- DPDK Stream interface (optional)
- Corundum NIC integration with performance DMA and PCIe (optional)

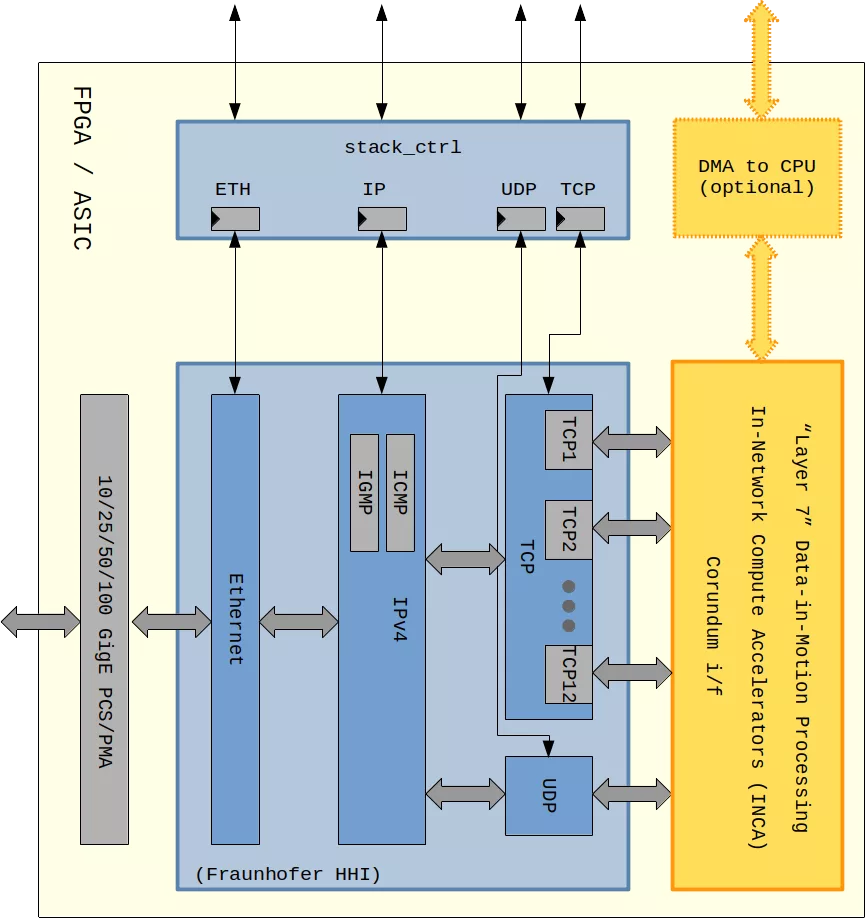

Block Diagram
NPAP block diagram
Benefits
- Accelerate CPUs by offloading TCP/UDP/IP processing into programmable logic (“Offloading”)
- Increase network throughput and reduce transport latency
- Bring full TCP/UDP/IP connectivity to FPGAs even if no CPU available (“Full Acceleration”)
- Complete and customizable turn-key solutions and IP cores based on the TCP/UDP/IP stack from the Fraunhofer HHI
- All MAC / Ethernet / IPv4 / UDP / TCP processing is implemented in HDL code, synthesizable to modern FPGAs and ASIC
- User applications can either be implemented in FPGA logic or in software via application-specific interfaces to CPUs
Applications
- FPGA-based SmartNICs
- In-Network Compute Acceleration (INCA)
- Hardware-only implementation of TCP/IP in FPGA
- PCIe Long Range Extension
- Networked storage, such as iSCSI
- Test & Measurement connectivity
- Automotive backbone connectivity based on open standards
- Video-over-IP for 3G / 6G / 12G transports
- Increase throughput for 10G/25G/50G/100G Ethernet
- Reduce latency in System-of-Systems communication
Specifications
Identity
Part Number
NPAP
Vendor
Missing Link Electronics
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
