RISC-V Processor - RV12 - 32/64 bit, Single Core CPU
The RV12 is a configurable single-issue, single-core RV32I, RV64I compliant RISC CPU intended for the embedded market.
Overview
The RV12 is a highly configurable single-issue, single-core RV32I, RV64I compliant RISC CPU intended for the embedded market. The RV12 is a member of the Roa Logic’s 32/64bit CPU family based on the industry standard RISC-V instruction set.
The RV12 implements a Harvard architecture for simultaneous instruction and data memory accesses. It features an optimizing folded 4-stage pipeline, which optimizes overlaps between the execution and memory accesses, thereby reducing stalls and improving efficiency.
Optional features include Branch Prediction, Instruction Cache, Data Cache, and Debug Unit. Parameterised and configurable features include the instruction and data interfaces, the branch-prediction-unit configuration, and the cache size, associativity, and replacement algorithms. Providing the user with trade offs between performance, power, and area to optimize the core for the application
Key features
- High Performance 32/64bit CPU
- Royalty Free Industry standard instruction set (www.riscv.org)
- Parameterized 32/64bit data
- Fast, precise interrupts
- Custom instructions enable integration of proprietary hardware accelerators
- Single cycle execution
- Optimizing folded 4-stage pipeline
- Optional/Parameterized branch-prediction-unit
- Optional/Parameterized caches
- Highly Parameterized
- User selectable 32 or 64bit data
- User selectable Branch Prediction Unit
- User selectable hardware multiply-divide (M extension)
- User selectable instruction and/or data caches
- User selectable cache size, structure, and architecture
- Flexible bus architecture supporting AHB, Wishbone, AXI, ...
- Size and power optimized design
- Fully parameterized design provides power/performance tradeoffs
- Small silicon footprint; 30kgates for full featured implementation
- Industry standard software support
- Eclipse IDE for Windows/Linux
- GNU Compiler Collection, debugger, linker, assembler
- Architectural simulator

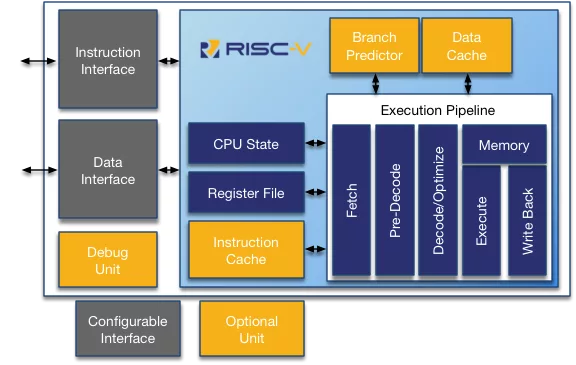

Block Diagram
RV12 - 32/64 bit, Single Core CPU block diagram
What’s Included?
- Full Source Code
- Testbenches
- Compilation Scripts
- Documentation
Specifications
Identity
Part Number
RV12 - 32/64 bit, Single Core CPU
Vendor
Roa Logic BV
Type
Silicon IP
Compute
CPU Architecture
RISC-V
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
The Netherlands
