Quad Serial Gigabit Media Independent Interface (QSGMII)
QSGMII (Quad Serial Gigabit Media Independent Interface) IP from Comcores is a high-speed serial interface developed to aggregate…
Overview
QSGMII (Quad Serial Gigabit Media Independent Interface) IP from Comcores is a high-speed serial interface developed to aggregate four Gigabit Ethernet (SGMII) ports into a single high-speed serial link using 8b/10b encoding at 5 Gbps. It reduces the number of physical connections needed between Ethernet MACs and PHYs contributing to lowering power and cost.
The IP is compliant with IEEE 802.3, SGMII, QSGMII (as defined by Broadcom) and is targeting ASIC’s and has gone through full UVM verification and is silicon proven.
Key features
Delivering Performance
- Aggregates 4 independent Gigabit Ethernet ports into a single serial link
- Operates at 5.0 Gbps using 8b/10b encoding
- Full duplex support for all 4 ports
- Supports auto-negotiation and link training
- Compatible with standard MAC/PHY interfaces
- Built-in synchronization and alignment logic
Applications
- Multi-port Gigabit Ethernet Switches
- Automotive Ethernet Aggregation
- Industrial Networking
- Access Network Equipment (OLT, ONU)

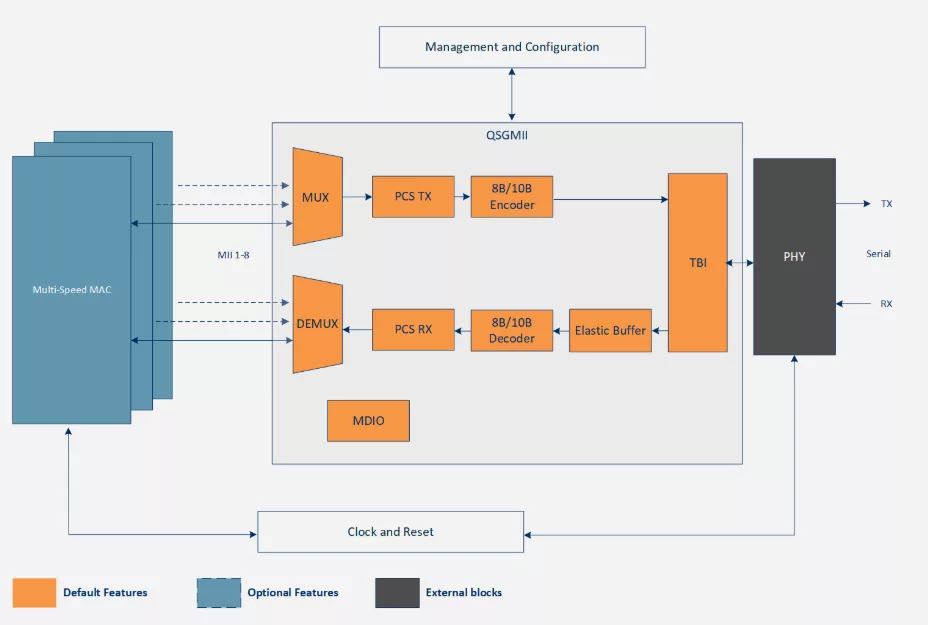

Block Diagram
Quad Serial Gigabit Media Independent Interface (QSGMII) block diagram
What’s Included?
The IP Core can be delivered in Source code or Encrypted format. The following deliverables will be provided with the IP Core license:
- IP in Source code or encrypted RTL
- Comprehensive documentation, including User Manual, Release Note and Product Brief
- Simulation Environment, including basic test environment, test cases and test scripts
- Access to a support system and direct support from Comcores Engineers
Specifications
Identity
Part Number
Quad Serial Gigabit Media Independent Interface (QSGMII)
Vendor
Comcores
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Denmark
