Vendor: MSquare Category: Single-Protocol PHY

ONFI 5.1 PHY IP

MSquare's ONFI 5.1 PHY is a high-performance and low-power PHY IP, which supports all modes of the Open NAND Flash Interface (ONF…

Contact Provider Request Datasheet

Overview

MSquare's ONFI 5.1 PHY is a high-performance and low-power PHY IP, which supports all modes of the Open NAND Flash Interface (ONFI) 5.1 specification. ONFI is an interface connecting external flash particles (NAND Flash) and internal flash controller (NAND Controller), widely used in Solid State Drive (SSD) products. To simplify the implementation, MSquare ONFI 5.1 PHY supports expandable channels and customizable CE/RB pad numbers.

Key features

  • Compliant with ONFI 5.1 specification
  • Supports NV-DDR3/NV-LPDDR4, with a maximum rate up to 3600MT/s
  • Supports matched or unmatched DQS
  • Supports WDCA/Per-Pin VREFQ Training for NAND devices
  • Supports WT Monitor
  • Supports Separate Command Address (SCA) to improve NAND IO efficiency
  • Supports 2 channels with a single PHY PLL & flexible floorplan with double or single row IO
  • Supports DFI with 1:1 / 1:2 clock ratio mode
  • Supports TX/RX Training mode
  • Delay-Chain supports background tracking for PVT compensation
  • Test Mode: Self-test mode with built-in BIST & Loopback test with built-in PRBS & BIST-Delay-Chain

Block Diagram

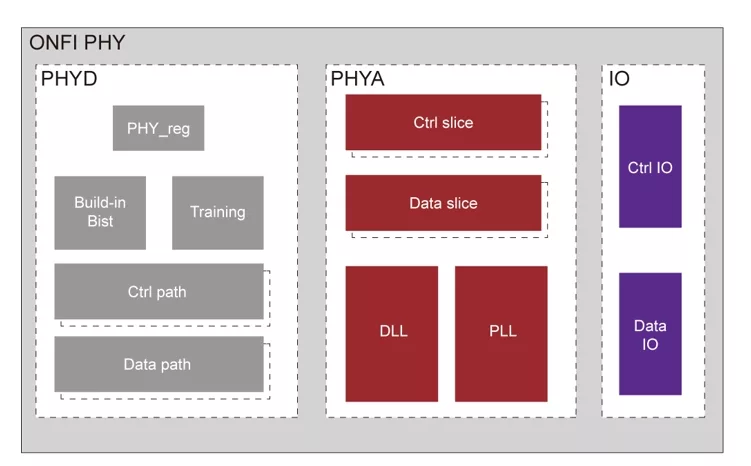

ONFI 5.1 PHY block diagram

Specifications

Identity

Part Number
ONFI 5.1 PHY
Vendor
MSquare
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

MSquare
HQ: China
Contact MSquare
