PCI Express 4.0 PHY

MSquare's PCI Express 4.0 PHY IP includes a high-speed, -efficient, and cost-effective transceiver to turbocharge today's high-pe…

Contact Provider Request Datasheet
PCIe Gen4 View all specifications

Overview

MSquare's PCI Express 4.0 PHY IP includes a high-speed, highly-efficient, and cost-effective transceiver to turbocharge today's high-performance and high-bandwidth applications such as data centers, automotive, enterprise computing, and high-performance embedded systems.

The PCIe IP boasts a low power consumption and compact silicon footprint. Its robust PHY architecture tolerates process, voltage, and temperature (PVT) variations. This IP integrates high-speed mixed-signal circuits to support PCIe 4.0 traffic at 16Gbps. It is backward compatible with PCIe 3.1 data rates at 8.0Gbps, PCIe 2.1 at 5.0Gbps, and PCIe 1.1 at 2.5Gbps. The multi-tab transceiver design, accompanied by a robust BIST, an embedded bit error rate (BER) tester, and an internal eye monitor, enables designers to control, test, and monitor signal integrity without the need for expensive test equipment.

Key features

  • Compiles with PCIe 4.0, 3.1, 2.1, 1.1 and PIPE 4.4.1 specifications
  • Supports all power-saving modes (P0, P0s, P1, P2) as defined in PIPE 4.4.1 specifications
  • Supports L1 PM/CPM substates with CLKREQ#
  • Supports the separate REFCLK Independent SSC (SRIS) architecture
  • Accessible register control TX PLL bandwidth, TX de-emphasis level, CDR bandwidth, and EQ strength
  • Supports both FOM and DIR modes for Link-EQ Training
  • Supports robust BIST/DFT functions for mass production tests
  • Supports bifurcation with 4-lane x 1 or 2-lane x 2 configurations

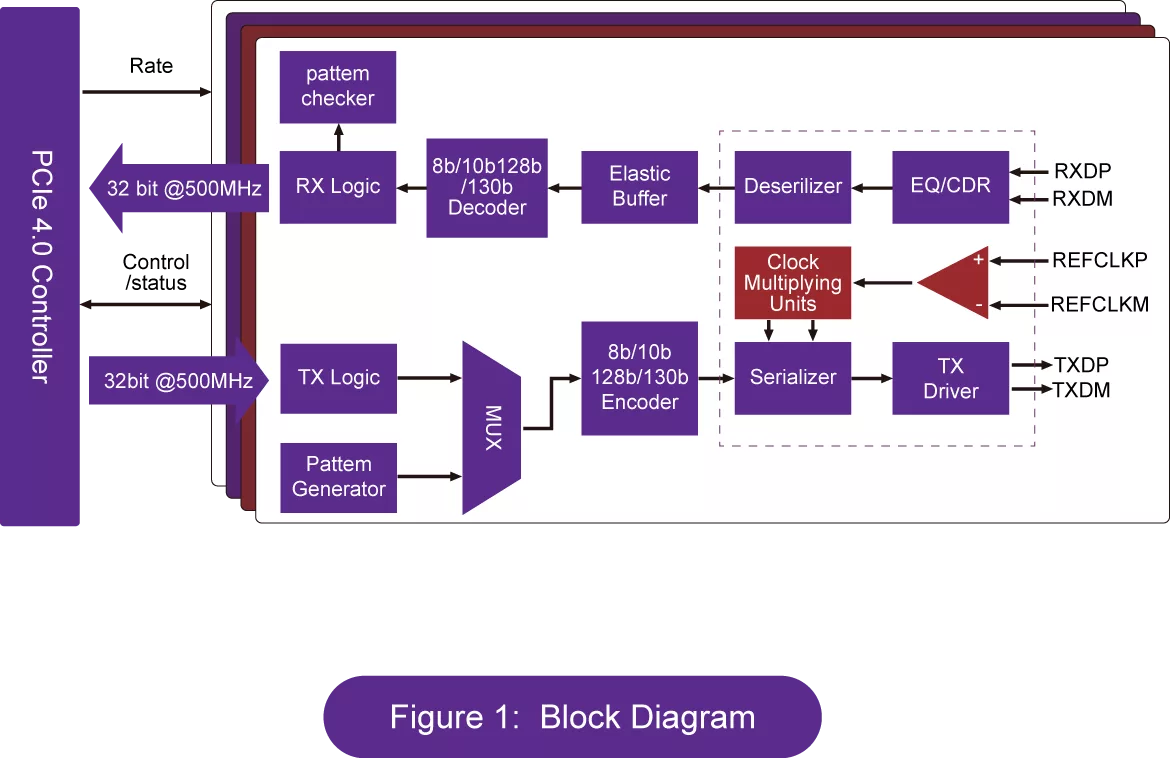

Block Diagram

PCIe PHY block diagram

Specifications

Identity

Part Number
PCIe PHY
Vendor
MSquare
Type
Silicon IP

Standards & Interfaces

Supported Standards
PCIe Gen4

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

MSquare
HQ: China
Contact MSquare
