Vendor: VeriSilicon Microelectronics (Shanghai) Co., Ltd. Category: Single-Protocol PHY

MIPI A-PHY Sink

Long reach SerDes for Automotive Sensor and Display Applications

ASIL B AEC-Q100 Grade 1 Automotive PHY View all specifications

Overview

A-PHY Sink IP (Link and PHY layers) is a 2-lane SerDes compliant with MIPI A-PHY specification v1.1. Each lane supports Downlink speed up to 8 Gbps and Uplink speed up to 100 Mbps. It targets low-cost high-speed asymmetric data connections in automotive environments where long reach and high reliability are required. Typical applications include advanced driver-assistance systems (ADAS), in-vehicle infotainment (IVI), autonomous driving systems (ADS), and other surround sensors (cameras, displays, LIDARs, etc.).

Key features

  • Complies with MIPI A-PHY specification v1.1
  • Lane type: 2-lane sink side, asymmetric mode
  • Supports Profile-1 and Profile-2: NRZ-8B/10B and PAM4 modulation
  • Supports Downlink Gear G1/G2/G3: 2/4/8 Gbps per lane
  • Supports Uplink Gear U1: 100 Mbps per lane
  • Supports cable length: 15 meters, single-ended 50Ω Coax or differential 100Ω SDP cables
  • Supports POC: Power Over Cable (Coax/SDP)
  • AEC-Q100 Grade-1 Qualified
  • ASIL-B Functional Safety Certified
  • Supports wire-bond and flip-chip packages

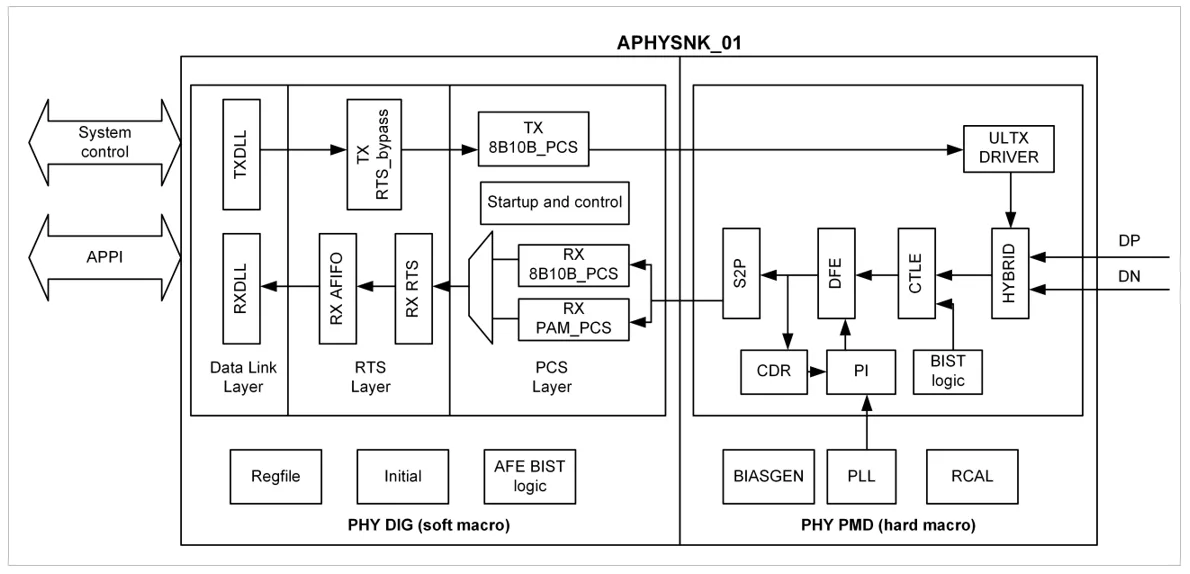

Block Diagram

Click to open fullscreen

Specifications

Identity

Part Number
MIPI A-PHY Sink
Vendor
VeriSilicon Microelectronics (Shanghai) Co., Ltd.
Type
Silicon IP
Application
Automotive
Controller / PHY
PHY

Technology

Temperature Grade
Automotive

Safety & Qualification

Functional Safety Level
ASIL B
Automotive qualification
AEC-Q100 Grade 1

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
