High Speed Ethernet 200G/400G MAC
The 100G/200G/400G/800G Ethernet MAC IP implements the full MAC layer and reconciliation sublayer compliant with the IEEE 802.3 s…
Overview
The 100G/200G/400G/800G Ethernet MAC IP implements the full MAC layer and reconciliation sublayer compliant with the IEEE 802.3 specification. The IP provides a complete set of features that enable the user to define an optimized MAC in products across a range of 100G/200G/400G/800G applications.
The IP passes received MAC frames without modification to the user application or to the Ethernet line. In addition, the IP supports IEEE-managed objects, IETF MIB-II and RMON for management applications (e.g., SNMP). On the application side, the 100G/200G/400G/800G Ethernet MAC IP implements a flexible FIFO interface that can be connected to a user application. On the Ethernet line side, the IP implements a 1024-bit CDMII (800G Media Independent Interface) to connect to an 800G PCS. When operating in 200G/400G or 400G speeds, the IP implements a 512-bit CDMII to connect to a 200G/400G PCS. The 100G Ethernet MAC IP implements a wide CGMII/XLGMII (100G/40G Medium Independent Interface) that supports a 10G operation.
The 100G/200G/400G/800G Ethernet MAC IP seamlessly interoperates with the 00G/200G/400G/800G Ethernet PCS IP and the 112G Ethernet PHY IP to provide a complete Ethernet MAC, PCS and PHY solution for 100G/200G/400G/800G systems
Key features
- Supports all required features of the IEEE 802.3bs specification
- Supports IEEE-managed objects, IETF MIB-II and RMON for management applications
- Application interface includes the Synopsys native interface 512-bit or 1024-bit FIFO for more than 200G operation
- Designed to be used with Synopsys 100G/200G/400G/800G Ethernet PCS IP
- Supports IEEE 1588 applications
- Silicon-proven

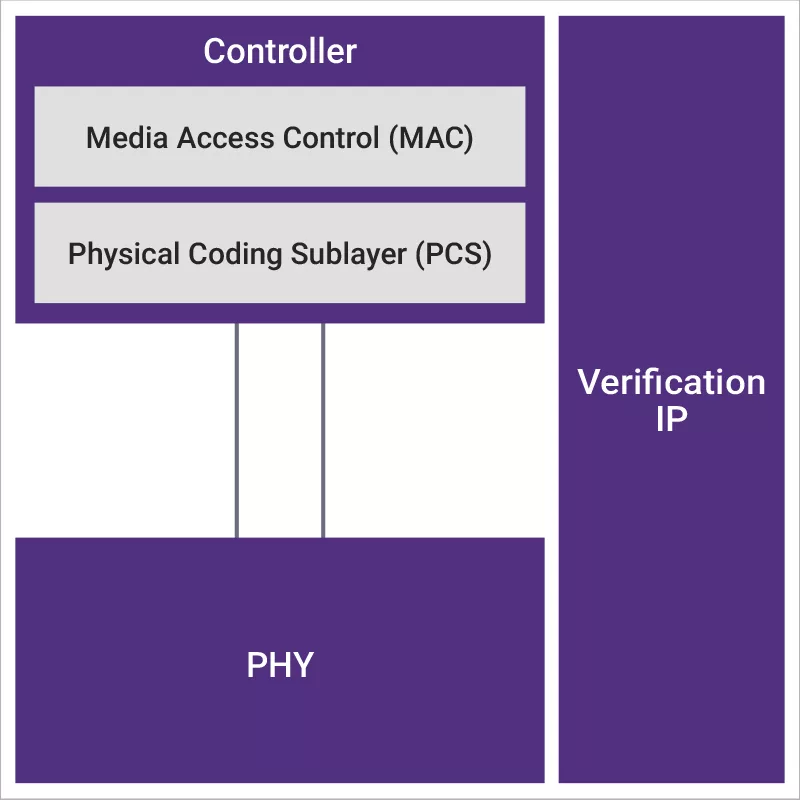

Block Diagram
dwc_ether_hse_400gmac block diagram
Specifications
Identity
Part Number
dwc_ether_hse_400gmac
Vendor
Synopsys, Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
