1G/2.5G Verification IP

The 1G/2.5G Ethernet Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet interface of an IP or SoC. The 1G/2.5G Ethernet VIP is fully compliant with IEEE standard 802.3 specification. This VIP is light weight with easy plug -and- play interface so that there is no hit on the design cycle time.

• Supports Standard GMII Interface.
• Supports Full-Duplex operation.
• Supports MMD block in all Physical sub-layers
• Provides STA controller to configure the MMD blocks.
• Supports EEE mode.
• Supports all types of error injection and detection.
• On-the-fly protocol checking using protocol check functions.
• Supports Loopback in PMA
• Supports Loopback In PCS.
• Supports LX,SX,CX PMD.
• Supports clause 37 compliant Auto-negotiation
• Provides configuration in a monitor for both error injection and normal test cases.
• Provide a scoreboard for endpoint verification.
• Support clock and data recovery for all Phy sub-layers.
• Support for generation of all command frames defined in the specification.
• Callback in RS and Phy layers to provide user control.
• Graphical Protocol layer analyzer shows Ethernet data for easy debug

• Available in native System Verilog (UVM/OVM/ VMM) and Verilog
• Unique development methodology to ensure the highest levels of quality
• Availability of Compliance & Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and coverage points with connectivity example for all the components
• Consistency of interface, installation, operation, and documentation across all our VIPs
• Provide complete solution and easy integration in IP and SoC environment

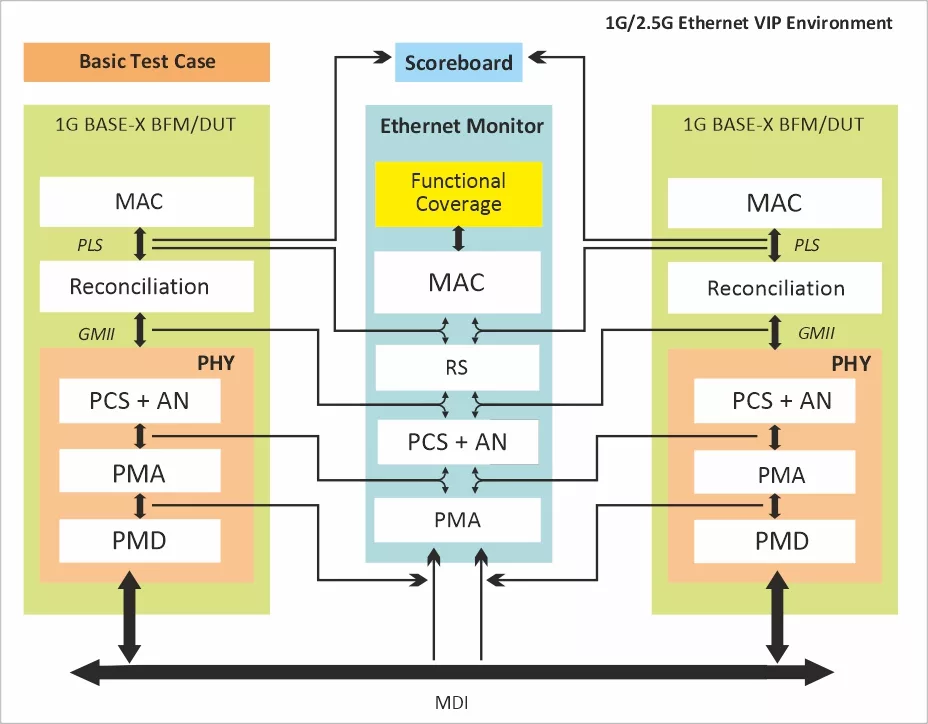

• 1G/2.5G Ethernet Master/Slave
• 1G/2.5G Ethernet BFM/Agents for:
  • MAC+RS Layer
  • PCS+PMA Layer of type BASE-X
  • PMD Layer
  • AN Layer
• 1G/2.5G Ethernet Layered Monitor and Scoreboard
• Integration Guide, User Manual and Release Notes
• Test Environment & Test Suite :
  • Basic and Directed Protocol Tests
  • Random Tests
  • Error Scenario Tests
  • Coverage Tests
  • User Test Suite
