General Purpose 10-bit DAC - 10 bits, 2MSPS, buffered output option - LFoundry 0.15µm LF150 CMOS

This macro-cell is a general purpose, 10-bit, 2MSPS, resistive Digital-to-Analog Converter (DAC) core designed for LFoundry 0.15μ…

10 Bit LFoundry 150nm View all specifications

Overview

This macro-cell is a general purpose, 10-bit, 2MSPS, resistive Digital-to-Analog Converter (DAC) core designed for LFoundry 0.15μm LF150 CMOS technology STD (Standard) and LP (Low Power) process.

The circuit has internal optional buffer to drive directly light loads and is optimized for low power consumption.

The core is easily retargeted to any other CMOS technology with R-poly devices.

Key features

  • General purpose resistive DAC
  • 10-bit resolution
  • 2MSPS speed
  • avdd = 3.3V, dvdd = 1.8V
  • INL = ±0.5 LSB, DNL = ±0.5 LSB
  • Buffered output option
  • Indicative area: 0.1mm2

Block Diagram

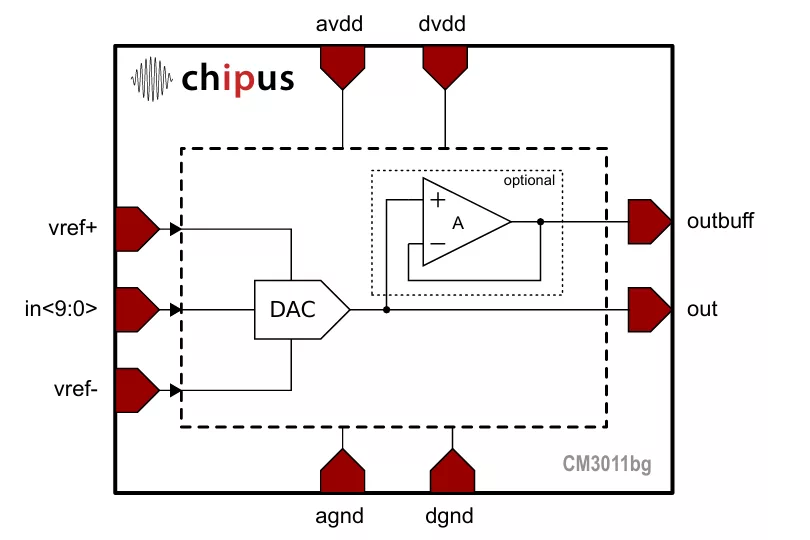

CM3011bg block diagram

Applications

  • Control applications
  • Fan speed control/driver
  • General purpose control/driver

What’s Included?

  • Datasheet/Integration Guide
  • HDL Model
  • Flat GDSII database/LVS netlist
  • Customer Support

Silicon Options

Foundry Node Process Maturity
LFoundry 150nm 150nm 1500 nm —

Specifications

Identity

Part Number
CM3011bg
Vendor
Chipus Microelectronics
Type
Silicon IP

Analog

Resolution bits
10 Bit

Files

Product Sheet Download
