2-Channel, 12-Bit, R-2R Digital-to-Analog Converter IP with Buffer (3µs)
A Dual Channel 12b D/A converter are provided with TSMC T40ULP+ESF3 wafer process
Overview
The AT4UFDAC00001235DDAFA0 is a dual-channel, 12-bit digital-to-analog converter (D/A) IP fabricated using TSMC's T40ULP+ESF3 (40nm Ultra-Low Power with Embedded SuperFlash 3) wafer process.
This voltage output D/A converter supports a wide supply range from 1.62V to 3.63V. The reference voltage can be set independently on the power supply. The linearity is excellent, and the transition is fast. The device supports two operation choices—high buffered mode, in which it can drive a 50pF capacitive load and a 5kΩ resistive load, and a high accuracy mode, in which it can show the high linearity from 0 to Full-Scale (FS).
Electrical Characteristics
| Item | Unit | Spec MIN | Spec TYP | Spec MAX | Description |
|---|---|---|---|---|---|
| Power Supply AVCC | V | 1.62 | - | 3.63 | |
| Power Supply VDD | V | 0.81 | - | 1.21 | |
| Temperature | °C | -40 | 25 | 125 | |
| Output Range — highly drivable mode | V | 0.2 | - | AVCC-0.2 | |
| Output Range — highly accurate mode | V | 0 | - | AVCC | |
| Conversion time | µs | - | - | 3 | |
| Integral Non-Linearity (INL) | LSB | -4 | - | +4 | |
| Differential Non-Linearity (DNL) | LSB | -1 | - | +1 | |
| Center Offset Error at highly drivable mode | LSB | -20 | - | +20 | |
| Gain Error at highly drivable mode | % | -1 | - | +1 | |
| Power consumption — highly drivable mode | mA | - | 2.6 | - | |
| Power consumption — highly accurate mode | mA | - | 0.25 | - | |
| Area | mm² | 0.113 | size on Si | ||
Key features
- 12-bit resolution, 3μs conversion time
- Level shifter inside - Directly connectable interface to the digital section
- Dual-channel
- Independent reference voltage from the power supply
- Supports 2-output mode; highly drivable mod/highly accurate mode
- High drivability of 50pF capacitive load and 5kΩ resistive load at the highly drivable mode
- Excellent linearity from 0 to Full-Scale at the accurate mode
- Process: TSMC T40ULP+ESF3

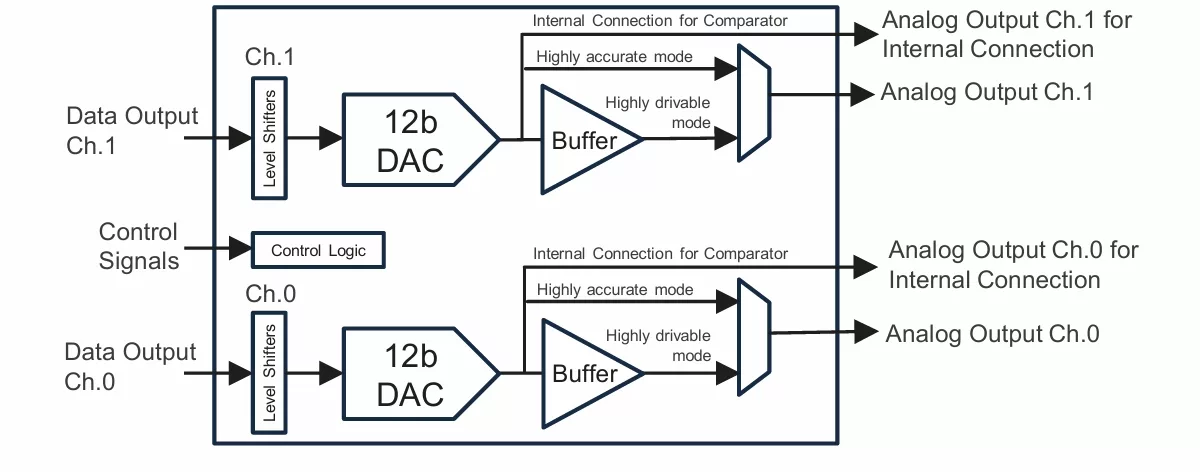

Block Diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 40nm | ULP | Available on request |
