2GS/s 11b dual I/Q DAC on GF 22nm FDX
Ultra-low power current-steering 2GS/s 11b dual I/Q DAC on GF 22nm FDX
Overview
Dual I/Q 11 bits Digital-to-Analogue converters implements in GlobalFoundries 22FDX/22FDX-PLUS. These converters run with a 2GHz sampling clock deliver output voltages on 100-ohms resistors tied to VDD. It can also be used as a current steering converter, as a current sink. Its compact footprint and low power dissipation make it an excellent choice for SoC design.
Key features
- Sampling clock frequency up to 2GHz
- Small area: 126um x 274um
- Power dissipation: 8mW @ 0.8V at 2GHz
- 9.5 bits ENOB typical — SFDR 65dB
- Output voltage range [VDD, VDD-0.2V]
- Output currents sink [0 — 2mA] GF 22FDX CMOS technology

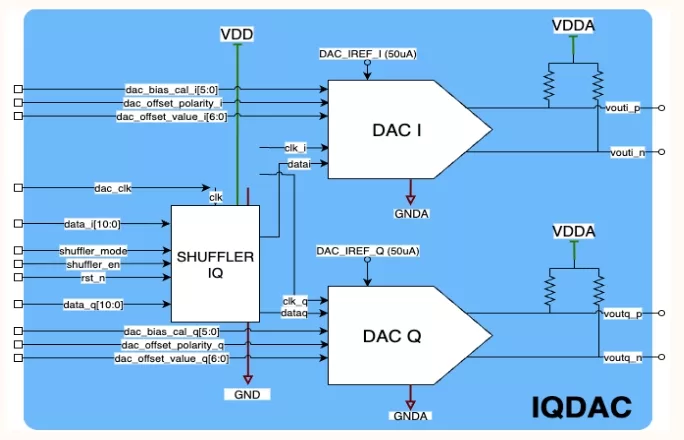

Block Diagram
Click to open fullscreen
Applications
- Wireless Communications
- Radar Applications
- Satellite Communications Wireline Communications
What’s Included?
- GDSII layout
- Verilog (or SystemVerilog) model
- Integration support
- DRC, LVS reports
- Datasheet including characterization results
- CDL netlist for LVS
- LEF files
- Verification report
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | Available on request |
| GlobalFoundries | 22nm | FDX+ | Available on request |
Specifications
Identity
Part Number
AIX-DACIQ-11B2G-GF22FDX
Vendor
InCirT GmbH
Type
Silicon IP
Analog
Resolution bits
11 Bit
Provider
HQ:
Germany
