12-bit Digital-to-Analog Converter
The agileDAC 12 has a nominal 12-bit resolution at sample rates up to 20 Msps and a synchronous digital data input interface, supports single-ended or differential output and inc
Overview
The agileDAC 12-bit digital-to-analog converter is a segmented current steering DAC. It has a nominal 12-bit resolution at sample rates up to 20 Msps and a synchronous digital data input interface, supports single-ended or differential output and includes an analog test port.
Agile Analog designs are based on tried and tested architectures to ensure reliability and functionality. Our design methodology is programmatic, systematic and repeatable leading to analog IP that is more verifiable, more robust and more reliable. Our methodology also allows us to quickly re-target our IP to different process options. We support all the major foundries including TSMC, GlobalFoundries, Intel Foundry, Samsung Foundry, UMC and Other Foundries.
Key features
- Resolution: 12bits (Typical)
- Sampling rate (Fs): Up to 20 Msps (Typical)
- Input signal bandwidth: Fs/2
- ENOB: 11bits (Typical)
- INL: 1.5 LSB
- DNL: 1.5 LSB
- Monotonic and no missing codes
- Optional output buffer
- Silicon area 0.0510mm2 in 22nm technology

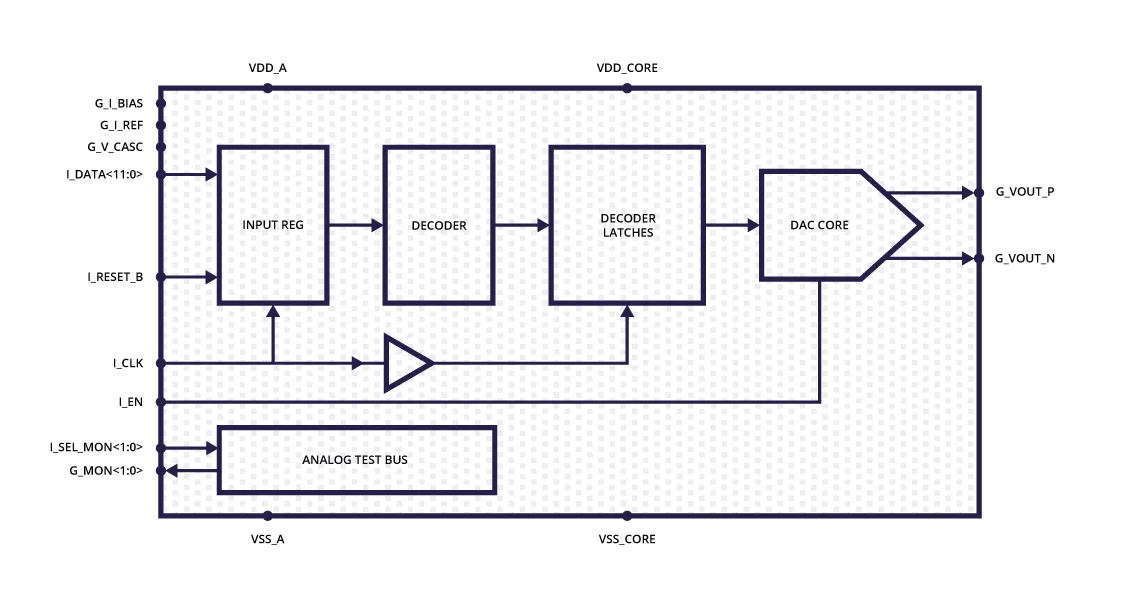

Block Diagram
Click to open fullscreen
Benefits
- Low DNL/INL
- Differential output
- Low layout dependency
- Ease of use
Specifications
Identity
Part Number
agileDAC 12
Vendor
Agile Analog
Type
Silicon IP
Analog
Resolution bits
12 Bit
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
United Kingdom
