FlexRay Controller

The FlexRay Controller fully complies with FlexRay Communication System Protocol Specification, Version 2.1, Revision A. It implements the specification-defined Controller Host Interface (CHI) and Protocol Engine (PE) functionality, with clean partitioning between the CHI and PE functional blocks.

The FlexRay Controller supports 4–252 message buffers and features standard interfaces to system logic and memories, so it can be readily optimized to your system requirements and easily integrated into your FPGA or ASIC device.

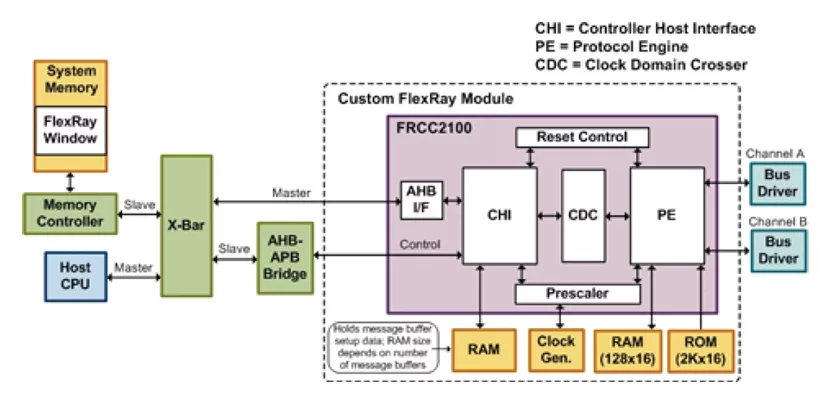

The host CPU interface is similar to the AMBA 2 APB. Example glue logic to connect to AMBA 2 APB is included with the product. The interface to FlexRay memory, which stores the message buffer header, payload, and status, is AMBA 2 AHB and can be adapted to other system memory interfaces upon request.

Hardware Configuration Parameters

 Gate Count and Performance

•  Modular design
  •  PE cleanly separated from CHI
  •  Memories external to core
•  Data transfer is done through message buffers that  hold the payload, header, and status information
•  Single 10-Mbit/s channel for affordability, dual  independent channels for 20-Mbit/s, or redundant 10-Mbit/s channels for reliability
•  Support for lower data rates (2.5, 5 and 8 Mbit/s)
• Maskable interrupt signals
•  Reports on clock synchronization
•  AMBA interface to host CPU and system memory
•  Low power consumption through extensive clock  gating (optional, may be implemented external to the  IP block)
•  CHI clock independent of PE clock through Clock Domain Crossing
• • Configurable:
  •  Maximum number of message buffers hardware
  •  configuration option (4-252)
  •  Message buffer setup programmable at runtime
  •  Two independent receive FIFOs, each with up to  255 entries and flexible filtering
  •  Four configurable slot error counters

• Verilog RTL source code
• Test bench with test suites
• Documentation including User’s Guide and Integration Guide
• Technology-independent synthesis constraints
