FlexRay - High-speed, reliable communication for safety-critical systems

FlexRay is a high-speed communication protocol designed for time-critical automotive and industrial applications.

Contact Provider Request Datasheet

Overview

FlexRay is a high-speed communication protocol designed for time-critical automotive and industrial applications. It ensures reliable, fault-tolerant communication, essential for safety-critical systems like ADAS, powertrains, and chassis control.

FlexRay Verification IP (VIP) ensures compliance with FlexRay standards, simulating message transmission, scheduling, error detection, fault tolerance, and real-time synchronization across nodes. This testing ensures system reliability and reduces design flaws during development.

Key features

  • Time-Triggered Communication: FlexRay ensures deterministic communication, where data is transmitted at exact intervals, critical for safety systems that depend on precise timing. This guarantees synchronization in complex automotive systems like ADAS.
  • High-Speed Data Transfer: FlexRay supports data rates of up to 10 Mbps, allowing efficient and fast communication of large data volumes. This is essential for systems that need real-time data exchange, such as those in advanced vehicle control.
  • Dual Channel Support: By utilizing two independent channels, FlexRay increases system redundancy, providing fail-safe operation. If one channel fails, the other ensures continued communication, crucial for reliability in safety-critical applications.
  • Error Detection and Fault Tolerance: Built-in mechanisms like CRC, error frames, and automatic retransmission detect and correct communication errors. This ensures FlexRay’s robustness, allowing the system to recover quickly from faults and continue functioning without disruption.
  • Scalable and Configurable: FlexRay supports various network sizes and can be configured to meet the needs of different automotive systems. Whether for small networks or large, complex systems, FlexRay adapts to provide efficient communication across various components.

Block Diagram

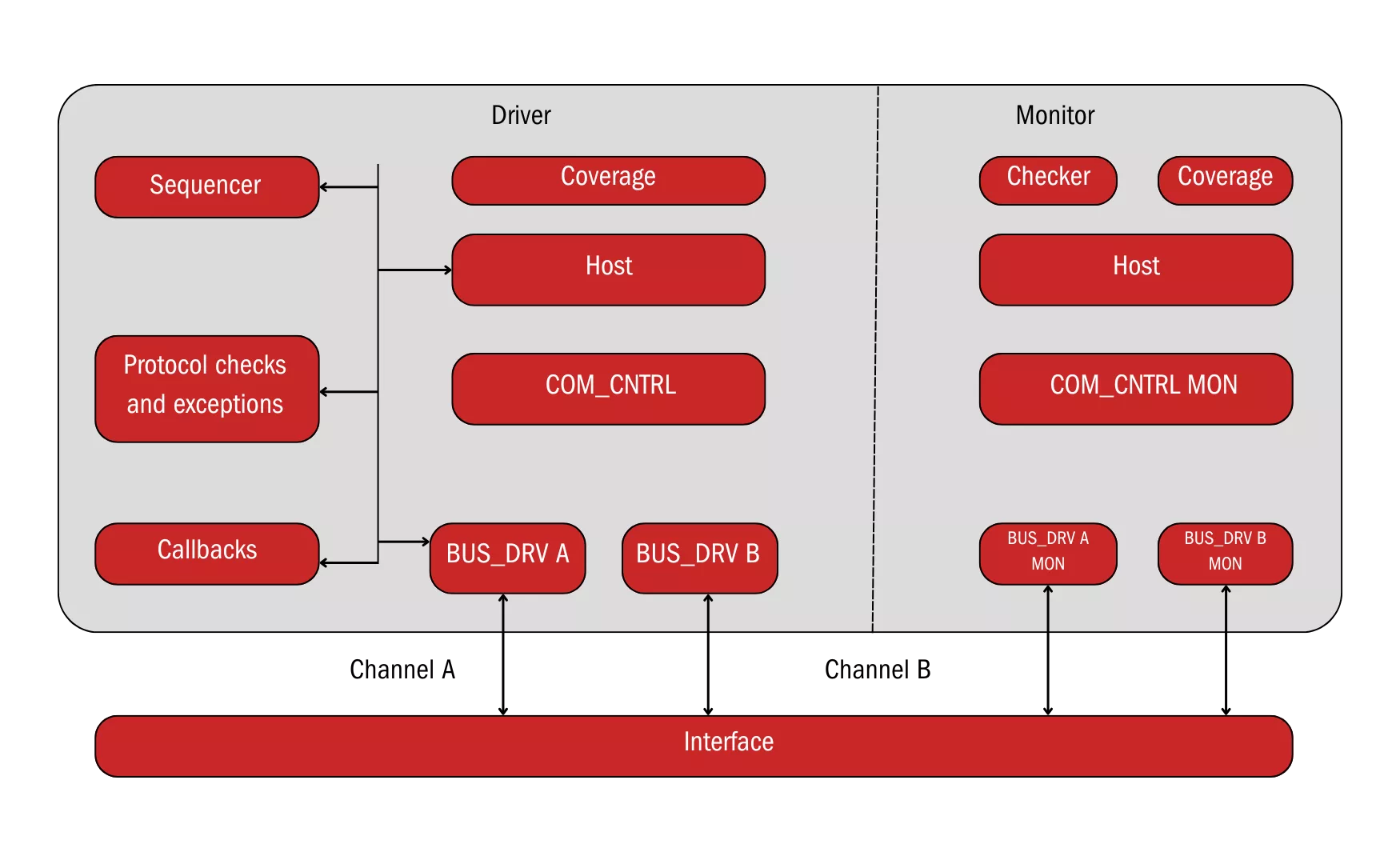

FlexRay block diagram
