Vendor: Comcores Category: Ethernet

Ethernet MAC & PCS 10G/25G

The Ethernet MAC and PCS 10G/25G is a silicon agnostic implementation of the IEEE 802.3 standard.

Overview

The Ethernet MAC and PCS 10G/25G is a silicon agnostic implementation of the IEEE 802.3 standard. The Ethernet MAC IP includes the Reconsiliation Sublayer (RS), and the PCS IP comes with RS-FEC and Base-R-/FC-FEC sublayers. The IP core performs the interconnection between the Physical- and Data-link layer.

The MAC and PCS IP is a low latency cut-through implementation reaching best in market results while still keeping size at a minimum.

The core is richly featured, fully configurable and supports IEEE1588 v2.1 PTP.

Key features

  • Richly Featured
    • Works with multiple SerDes widths
    • 64B 66B encoding/decoding
    • IEEE Std. 802.3 Clause 45, 46, 49, 74, 78, 107 and 108 are supported
    • (RS-FEC) sublayer for 25GBASE-R PHYs
    • Can be delivered with statistics gathering or status vectors
    • 64-bit AXI-S64-bit AXI-Stream interface
    • Cut-through operation mode by default, Store and Forward is optional
    • Deficit Idle Count for maximum data throughput
    • Comprehensive statistics gathering
    • Jumbo frames support with programmable MTU
    • Easy integration with standard Xilinx AXI-4 Lite control interface or APB
  • Delivering Performance
    • Designed to IEEE 802.3-2018 specification
    • Low latency and compact implementation
  • Highly Configurable
    • 10G/25G data rates with cut-through supported
    • Support for IEEE 1588
  • Silicon Agnostic
    • Designed in SystemVerilog and VHDL and targeting both ASICs and FPGAs

Block Diagram

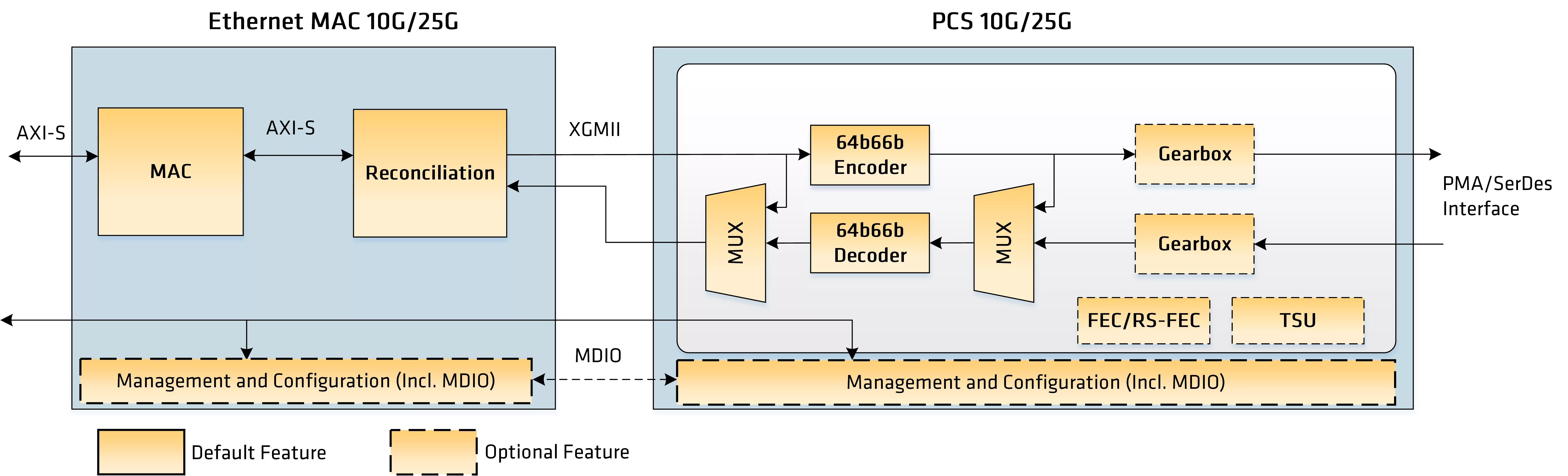

Ethernet MAC & PCS 10G/25G block diagram

What’s Included?

  • The IP Core can be delivered in Source code or Encrypted format. The following deliverables will be provided with the IP Core license:
    • Solid documentation, including User Manual and Release Note
    • Simulation Environment, including Simple Testbed, Test case, Test Script
    • Programming Register Specification
    • Timing Constraints in Synopsys SDC format
    • Access to support system and direct support from Comcores Engineers
    • Synopsys SGDC Files
    • Synopsys Lint, CDC and Waivers

Specifications

Identity

Part Number
Ethernet MAC & PCS 10G/25G
Vendor
Comcores
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Comcores
HQ: Denmark
