Ethernet 800G PCS IP

SmartDV’s Ethernet 800G PCS (Physical Coding Sublayer) IP Core is engineered to deliver robust and efficient data encoding, alignment, and error correction for ultra-high-speed Ethernet systems. Compliant with IEEE 802.3ck and 802.3df specifications, it supports essential PCS functionalities such as 64b/66b encoding/decoding, FEC (Forward Error Correction), lane distribution and alignment, and deskew for 800G Ethernet links.

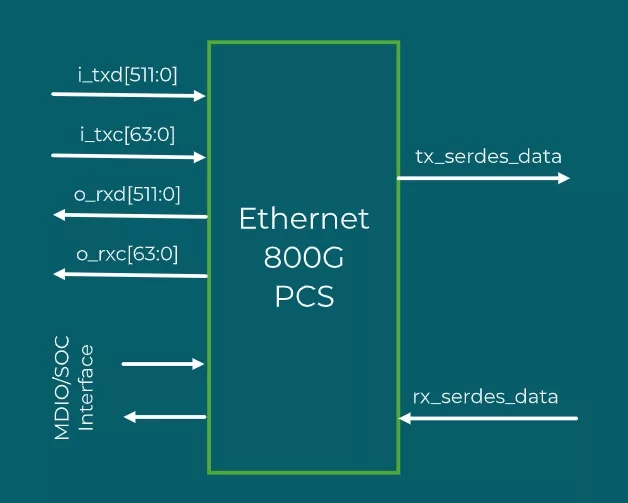

Designed to interface seamlessly with 800G MAC and PMA layers, the IP core supports industry-standard interfaces including 800G CMAC, CGMII, and PAM4-based PHY interfaces. Its modular architecture ensures easy customization and integration across diverse high-speed networking environments.

Designed for flexibility, the IP core is highly configurable to meet specific design requirements, supporting both ASIC and FPGA implementations while optimizing for area, power, and performance. This makes it a powerful building block for future-proof Ethernet platforms across cloud-scale networking, AI/ML fabrics, and high-performance computing environments.

• Next-Generation 800G PCS Layer – Implements the Physical Coding Sublayer as defined in IEEE 802.3-2022, ensuring robust and efficient multi-lane 800 Gbps data transmission.
• 256b/257b and 64b/66b Encoding – Performs encoding, decoding, synchronization, and block alignment with integrated error detection for high-speed reliability.
• Multi-Lane Distribution & Deskew – Supports 800GAUI-8 and 800GAUI-16 configurations with lane alignment, deskew, and reorder logic to maintain signal integrity.
• Optional RS-FEC Integration – Interoperates with standard RS-FEC implementations (as defined in 802.3ck/802.3df) for enhanced link robustness and error correction.
• Low-Latency, Power-Efficient Design – Optimized for deterministic latency and energy efficiency, ensuring maximum performance for dense networking environments.
• Seamless MAC Integration – Designed for direct connectivity with SmartDV 800G MAC IP, offering a verified MAC-to-PHY pipeline for ASIC and FPGA deployments.
• Flexible PHY Interfaces – Supports 800GAUI-8, 800GAUI-16, and CAUI-16 logical interfaces for interoperability across diverse PHY architectures.
