Ethernet 40G,100G Verification IP

The Ethernet 40G,100G Verification IP is compliant with IEEE 802.3ba and IEEE 802.3bj specifications and verifies MAC-to-PHY and PHY-to-MAC layer interfaces of designs with a Ethernet 40G,100G interface. It can work with SystemVerilog, Vera, SystemC, E and Verilog HDL environment. Ethernet 40G,100G verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethernet product.

Ethernet 40G,100G Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

Ethernet 40G,100G Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

• Supports 1G
• Supports GMII
• Supports TBI (i.e Output of 8b/10b PCS)
• Supports SGMII(10M/100M/1000M) as per specification 1.8
• Supports QSGMII as per specification 1.2
• Supports USGMII as per specification 3.0 and 3.1(5G and 10G)
• Supports RGMII(10M/100M/1000M),RTBI as per specification 2.0
• Supports 1000Base-KX
• Supports 1GBASE-SX and 1GBASE-LX
• Supports clause 73 backplane auto-negotiation for 1000Base-KX
• Supports clause 37 auto-negotiation
• Supports SGMII auto-negotiation
• Supports QSGMII auto-negotiation
• Supports USGMII auto-negotiation and packets
• Supports full duplex and half duplex of operation
• Supports 40G as per 802.3ba
• Supports XLGMII
• Supports 40GBase-KR4/40GBase-CR4/40GBase-SR4/40GBase-LR4
• Supports XLAUI
• Supports FEC
• Supports scrambler
• Supports backplane auto-negotiation
• Supports Link training
• Supports 100G as per 802.3ba and 802.3bj
• Supports CGMII
• Supports 100GBase-KR10/100GBase-CR10/100GBase-SR10
• Supports 100GBase-ER4/100GBase-LR4
• Supports 100GBase-KR4
• Supports 100GBase-KR2
• Supports 100GBase-KR
• Supports 100GBase-R
• Supports 100GBASE-KP4 with PMA enable.
• Supports Gray coding and Precoding as per Spec IEEE 802.3-2018
• Supports CAUI_4 and CAUI10
• Supports RS_FEC(clause 91) and Fire-code FEC
• Supports scrambler
• Supports backplane auto-negotiation
• Supports Link training
• Supports Pause frame generation and detection.
• Supports MDIO slave and master model as per Clause 22 and Clause 45
• Glitch insertion and detection
• PCS to Serdes interface supports all widths
• Supports CDR for serial protocols
• Supports the upper layer protocols
• Full support for IEEE 802.1AZ (Energy Efficient Ethernet)
• Full support for IEEE 1588-2002 and IEEE 1588-2008
• Supports G.999.1 Interface
• Ethernet Verification IP comes with complete UNH Test suite
• Supports all types of TX and RX errors insertion/detection at each layer.
• Oversize, undersize, inrange, out of range Packet size errors
• Missing SPD/EPD/SFD framing errors
• SFD on wrong lane
• CRC Error
• Lane skew insertion
• Invalid /D/ and /K/ character injection
• Variable preamble and IPG insertion
• Invalid block code insertion
• Sync bit corruption
• FEC error injection
• Scrambler error injection

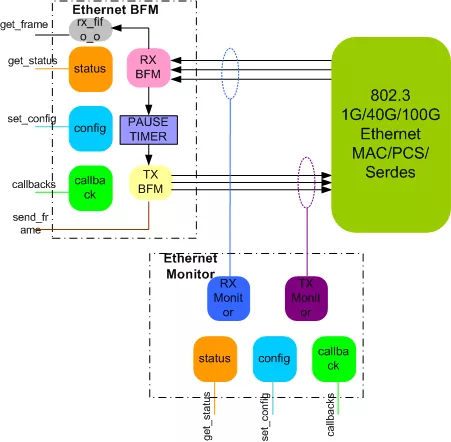

• Comes with Tx BFM,Rx BFM, and Monitor.
• Monitor supports detection of all protocol violations.
• Built in coverage analysis.
• Status counters for various events in bus

• Faster testbench development and more complete verification of Ethernet 40G,100G designs.
• Easy to use command interface simplifies testbench control and configuration of Ethernet 40G,100G TX and RX.
• Simplifies results analysis.
• Runs in every major simulation environment.

• Complete regression suite (UNH) containing all the Ethernet 40G,100G testcases.
• Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
• Detailed documentation of all class, task and function's used in verification env.
• Documentation also contains User's Guide and Release notes.
