Ethernet 25G,50G Verification IP

The Ethernet 25G,50G Verification IP is compliant with IEEE 802.3 specifications and verifies MAC-to-PHY and PHY-to-MAC layer interfaces of designs with a Ethernet 25G,50G interface. It can work with SystemVerilog,Vera, SystemC, E and Verilog HDL environment. Ethernet 25G,50G Verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethernet product.

Ethernet 25G,50G Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

Ethernet 25G,50G Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

• Supports 25G and 50G Speeds as per the 802.3-2018 specification,
• 25GBase_R
• 25GBase_KR
• 50GBase_KR
• 50GBase_KR2
• Supports FEC
• Supports scrambler
• Supports backplane auto-negotiation
• Supports Link training
• Supports Pause frame generation and detection.
• Supports MDIO slave and master model as per Clause 22 and Clause 45
• Glitch insertion and detection
• PCS to Serdes interface supports all widths
• Supports CDR for serial protocols
• Supports the upper layer protocols
• Full support for IEEE 802.1AZ (Energy Efficient Ethernet)
• Full support for IEEE 1588-2002 and IEEE 1588-2008
• Ethernet Verification IP comes with complete UNH Test suite
• Supports all types of TX and RX errors insertion/detection at each layer.
• Oversize, undersize, inrange, out of range Packet size errors
• Missing SPD/EPD/SFD framing errors
• SFD on wrong lane
• CRC Error
• Lane skew insertion
• Invalid /D/ and /K/ character injection
• Variable preamble and IPG insertion
• Invalid block code insertion
• Sync bit corruption
• FEC error injection
• Scrambler error injection

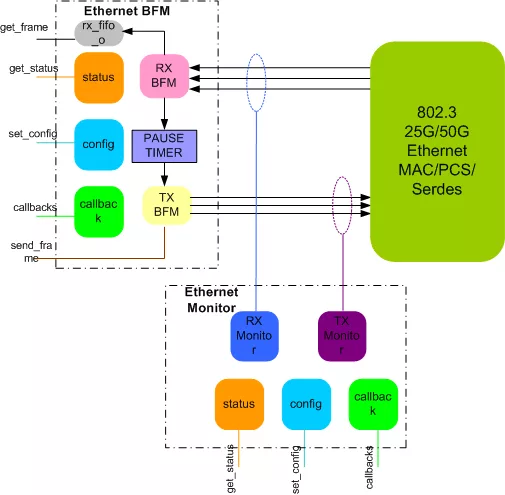

• Comes with Tx BFM,Rx BFM, and Monitor.
• Monitor supports detection of all protocol violations.
• Built in coverage analysis.
• Status counters for various events in bus

• Faster testbench development and more complete verification of Ethernet 25G,50G designs
• Easy to use command interface simplifies testbench control and configuration of TX and RX
• Simplifies results analysis
• Runs in every major simulation environment

• Complete regression suite (UNH) containing all the Ethernet 25G,50G testcases.
• Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
• Detailed documentation of all class, task and function's used in verification env.
• Documentation also contains User's Guide and Release notes.
