Ethernet 10G Verification IP

The Ethernet 10G Verification IP is compliant with IEEE 802.3 Specification and verifies MAC-to-PHY and PHY-to-MAC layer interfaces of designs with a Ethernet 10G interface. It can work with SystemVerilog, Vera, SystemC, E and Verilog HDL environment.Ethernet 10G verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethernet product.

Ethernet 10G Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

Ethernet 10G Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

• Supports 10G as per specification IEEE 802.3-2018
• Supports XGMII(32 and 64 Width)
• Supports XGMII_R(32 and 64 Width)
• Supports XTBI (i.e Output of 8b/10b PCS)
• Supports XAUI,RXAUI,DXAUI,RXTBI and 10GBASE-KX4
• Supports 10GBASE-KR with scrambler
• Supports FEC for 10GBase-KR
• Supports scrambler
• Supports backplane auto-negotiation for 10GBase-KX4 and 10GBase-KR
• Supports USXGMII
• Supports single port USXGMII as per specification 2.5
• Supports multi-port USXGMII as per specification 2.2
• XSBI Interface (16-bit)
• XSBI Interface (20-bit)
• Supports Link training
• Supports G.999.1 Interface
• Ethernet Verification IP comes with complete UNH Test suite
• Supports the Upper layer protocols
• Supports IP in IP
• Supports Q in Q
• Full support for IEEE 802.1AZ (Energy Efficient Ethernet)
• Full support for IEEE 1588-2002 and IEEE 1588-2008
• PCS to Serdes interface supports all widths
• Supports CDR for serial protocols
• Supports WAN Interface Sublayer (WIS), type 10GBASE-W
• Supports MDIO slave and master model as per Clause 22 and Clause 45
• Supports Glitch insertion and detection
• Supports all types of TX and RX errors insertion/detection at each layer.
• Under and oversize frame.
• CRC errors
• Framing errors
• Pause frame errors
• Disparity and Auto-negotiation errors
• Invalid code group insertion
• Invalid /K/ characters insertion
• Lane Skew insertion
• Invalid AN sequence error insertion
• Missing /K/ characters for packet boundries.

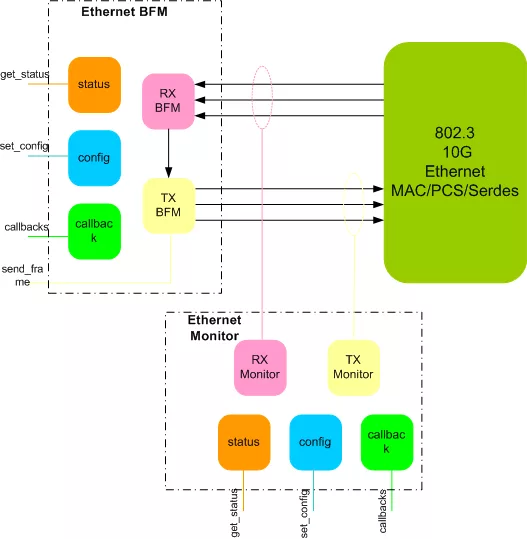

• Comes with Tx BFM, Rx BFM, and Monitor
• Monitor supports detection of all protocol violations
• Supports Pause frame generation and detection
• Built in coverage analysis
• Callbacks in master and slave for various events
• Status counters for various events in bus

• Faster testbench development and more complete verification of Ethernet 10G designs.
• Easy to use command interface simplifies testbench control and configuration of Ethernet 10G TX and RX.
• Simplifies results analysis.
• Runs in every major simulation environment.

• Complete regression suite containing all the testcases.
• Examples showing how to connect various components, and usage of TX,RX BFM and Monitor.
• Detailed documentation of all class, task and function's used in verification env.
• Documentation also contains User's Guide and Release notes.
