Entry-level Low-Power 32-bit Processor
N705 is an ultra low-power small-size synthesizable general purpose 32-bit softcore embedded processor.
Overview
N705 is an ultra low-power small-size synthesizable general purpose 32-bit softcore embedded processor. With competitive small core size, high power-efficiency and small code size of the V3m ISA, it is the best candidate to replace 8051 and other 8-bit MCUs for small-footprint, cost and power sensitive applications.
For ease of integration in SoC design, it is delivered with a complete softcore development package as well as reference design flow to fit the requirements in all aspects of performance, power consumption, and cost. In addition, N705 is supported by user-friendly development tools, size-optimized MCU libraries and 2-wire low-cost ICE debugger.
For ease of integration in SoC design, it is delivered with a complete softcore development package as well as reference design flow to fit the requirements in all aspects of performance, power consumption, and cost. In addition, N705 is supported by user-friendly development tools, size-optimized MCU libraries and 2-wire low-cost ICE debugger.
Key features
- Seamless migration to full 32-bit environment from 8/16-bit MCUs
- Low power consumption for extended battery life
- Small footprint with low gate count and high code density
- Speed-up and power reduction for Flash accesses by FlashFetch technology
Block Diagram

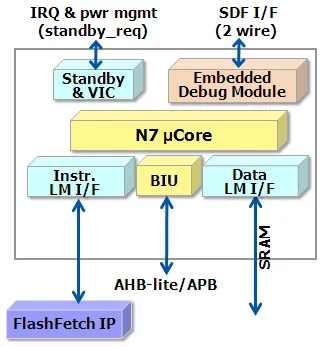

AndesCore ™ N705 block diagram
Benefits
- Performance
- 16/32bit mixable instruction format for compacting code density
- Low-latency vectored interrupt for real-time performance
- Single-cycle capable for most Local Memory and AHB bus accesses
- FlashFetch™ technology to accelerate internal parallel and/or external SPI flash memory
- Flexibility
- All-C Embedded Programming
- Stack protection hardware to help determining stack size needed, and
- detect runtime overflow error
- Processor state bus to simplify SoC design and debugging
- Support boot-up from Inst. local memory
- Power Management
- Low power modes initiated by SW or SoC
- N:1 core/bus clock ratios
Applications
- Medical devices
- Smart energy monitor and control
- Home security and remote control
- Gas/water/Electronic metering
- Internet of Things (IOT)
- Sensor Fusion
Specifications
Identity
Part Number
AndesCore ™ N705
Vendor
Andes Technology Corp.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
R.O.C
