Complete 1.6T Ultra Ethernet IP Solution

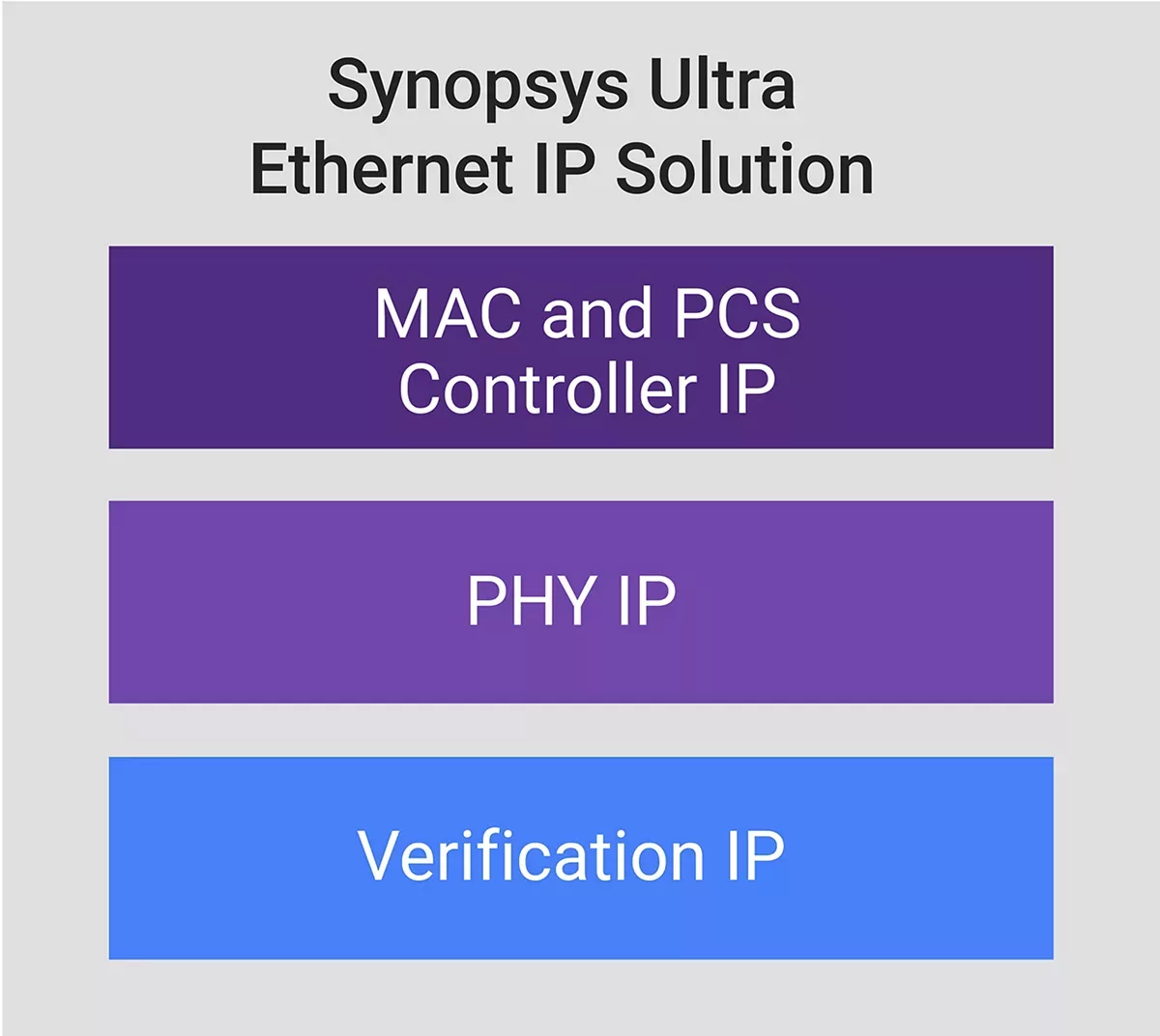

The 1.6T Ultra Ethernet IP solution, consisting of 1.6T MAC and PCS multi-rate Ultra Ethernet controllers, silicon proven 224G and 112G Ethernet PHY IP, and verification IP, is designed to meet the performance requirements of interconnects in the scale-out of AI Clusters compliant to the upcoming Ultra Ethernet Consortium specification. The solution is based on the evolving IEEE 802.3dj/df Ethernet standard with support of the Ultra Ethernet MAC and PHY layers for a GPU, NIC or scale-up Switch. The IP solution supports Interconnects at the rates of 400G, 800G and 1.6T.

By providing a complete IP solution, Synopsys delivers latency optimization and ensures that all the IP functions seamlessly together to lower integration risk. The high-bandwidth, excellent performance of the Ethernet IP solution is optimized for low power, small area and low latency.

The best-in-class IP solution has undergone thorough validation with various hardware platforms, PHYs, and Ethernet verification suites across a diverse range of processes and foundries. Leveraging Synopsys’ extensive PAM-4 design expertise and a proven track record in high-speed Ethernet controller designs, designers can accelerate time-to-market and achieve first pass silicon success for their advanced SoCs.

• Ethernet MAC, PCS and PHY to complete a full Ultra Ethernet interface stack
• Supports evolving IEEE 802.3 and OIF-224G electrical standards
• Provides support for 4 x 400G, 2 x 800G, and 1.6T Ethernet rates using 112Gbps and 224Gbps SerDes
• Meets performance criteria for chip-to-chip, chip-to-module, and long reach copper/backplane interconnects
• Incorporates a DAC-based PAM-4 transmitter with feed-forward equalization (FFE)
• High-performance receiver equalization, supporting a channel loss up to 45dB
• Utilizes low jitter phase-locked loops (PLLs) for robust timing recovery and improved jitter performance
• Features a digital-based receiver with an analog front-end (AFE), ADC, and an advanced digital signal processor (DSP)
• Inserts and extracts Control Ordered Sets (CtlOS) required for Link-Level Retry and Credit Based Flow Control mechanisms
• Supports IEEE 1588 applications
• Includes Ethernet PCS RS-FEC functions • Compatible with IEEE-managed objects, IETF MIB II, and RMON for management applications

• Seamless integration with MAC and PCS Controller, PHY and Verification IP
• Maximize bandwidth with 1.6 Tbps of bandwidth
• Reduce risk with silicon-proven Synopsys 224G PHY IP
• Achieve ultra-low latency with patented error correction implementation
