Compact High-Speed 32-bit CPU Core
AndesCore™ N25F is a 32-bit CPU IP core based on AndeStar™ V5 architecture which incorporated RISC-V technology, it is capable of…
Overview
AndesCore™ N25F is a 32-bit CPU IP core based on AndeStar™ V5 architecture which incorporated RISC-V technology, it is capable of delivering high per-MHz performance and operating at high frequencies, at the same time it is small in gate count. N25F also supports single- and double-precision floating point and bit-manipulation instructions. N25F comes with options, including branch prediction for efficient branch execution, Instruction and Data caches, Local Memories for low-latency accesses, ECC for L1 memory soft error protection, and Andes Custom Extension™ (ACE) to add proprietary instructions to accelerate performance/power consumption critical spots.
N25F’s 5-stage pipeline is optimized for high operating frequency and high performance. Features also includes PLIC and vectored interrupts for serving various types of system events, AXI 64-bit or AHB 64/32-bit bus, PowerBrake, QuickNap™ and WFI mode for low power and power management, and JTAG debug interface for development support.
Key Features and Performance
AndeStar™ V5 Architecture
| Key Features | Benefits |
|---|---|
| RISC-V RV32IMACFDB Instructions |
|
| RISC-V single and double precision floating point instruction | Accelerate the processing of high precision arithmetic |
| RISC-V bit-manipulation instructions, including the Zba, Zbb, Zbc and Zbs extensions | Benefits codes with bit-wise operations |
| Andes Extended Instructions | Andes exclusive performance and functionality enhancements |
| Andes Custom Extension™ (ACE) option to create customized instructions for software acceleration |
|
| 16/32-bit mixable instruction format | For compact code density |
| 32 general-purpose registers | For better code size and performance |
| Machine (M) and User (U) Privilege levels | Embedded systems with privilege protections |
CPU Core
| Key Features | Benefits |
|---|---|
| 3.57 Coremark/MHz, 1.98 DMIPS/MHz* | Superior performance-per-MHz |
| 5-stage pipeline, with a full-cycle reserved for critical SRAM accesses | Superior performance-efficiency, while allowing for high speeds |
|
Extensive branch prediction features
|
|
| Physical Memory Protection (PMP), 16 regions | Basic read/write/execute memory protection with minimum cost |
| Performance monitors | Program code performance tuning |
| StackSafe™ hardware stack protection |
|
|
Multiplier options
|
Option to choose between speed and area according to application's requirements |
| PowerBrake technology | Performance throttling to digitally reduce power consumption |
| QuickNap™ technology | Fast power-down/wake-up support for caches |
* AndeSight v500, DMIPS/MHZ follow Dhrystone’s no-inline ground rules, best performances
Memory Subsystems
| Key Features | Benefits |
|---|---|
|
I-Cache & D-Cache
|
|
|
ILM & DLM
|
|
| Soft-error protection: ECC or parity for I-Cache and D-Cache, ILM and DLM with SRAM interface | Code and data integrity protection |
| Bus manager port: AXI with 64-bit data or AHB with 64 or 32-bit data, AXI with I/D separate or joint bus | User-selectable bus interface for optimal efficiency |
| Bus subordinate port: AHB with 64 or 32-bit data, for ILM/DLM accesses | Efficient data transfer between CPU and SoC managers |
| Core/bus clock ratio of N:1 | Simplified SoC integration |
Platform-Level Interrupt Controller (PLIC)
| Key Features | Benefits |
|---|---|
|
Implements RISC-V PLIC specification
|
Allow individual interrupts to be serviced and prioritized without sharing |
|
Enhanced interrupt features
|
|
Debug Support
| Key Features | Benefits |
|---|---|
| Implements RISC-V debug specifications | Supported by industry debug tool suppliers |
| JTAG Debug Port | Industry-standard support |
| Embedded Debug Module with up to 8 triggers | Flexible configurations to tradeoff between gate count and debugging capabilities |
| Exception redirection support | Entering debugger upon selected exceptions without using breakpoints |
Performance
| Core, Process | N25F (w/o FPU), 28HPC+ |
|---|---|
| Frequency (MHz) | 50 |
| Dynamic power (uW/MHz) | 3.6 |
| Area (mm2) | 0.032 |
| Core, Process | N25F (w/o FPU), 28HPC+ | N25F (with FPU), 28HPC+ |
|---|---|---|
| Frequency (MHz) | 1000 | 1000 |
| Dynamic power (uW/MHz) | 4.1 | 6.6 |
| Area (mm2) | 0.033 | 0.089 |
Key features
- AndeStar™ V5 Instruction Set Architecture (ISA), compliant to RISC-V technology
- Floating point extensions
- Bit-manipulation extensions
- Andes extensions, architected for performance and functionality enhancements
- Separately licensable Andes Custom Extension™ (ACE) for customized acceleration
- 32-bit, 5-stage pipeline CPU architecture
- 16/32-bit mixable instruction format for compacting code density
- Branch prediction to speed up control code
- Return Address Stack (RAS) to speed up procedure returns
- Physical Memory Protection (PMP)
- Flexibly configurable Platform-Level Interrupt Controller (PLIC) for supporting wide range of system event scenarios
- Enhancement of vectored interrupt handling for real-time performance
- Advanced CoDense™ technology to reduce program code size

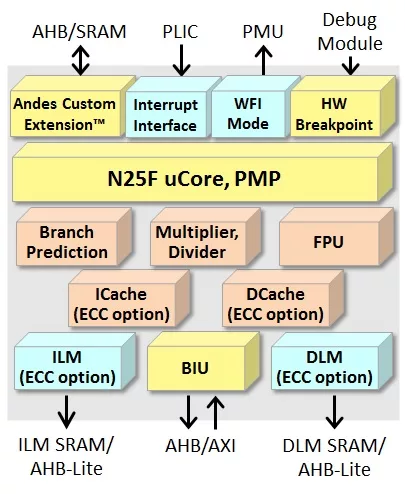

Block Diagram
AndesCore™ N25F block diagram
Applications
- Networking and Communications
- Advanced Driver-Assistance Systems
- Video and Image Processing
- Storage and Media Streaming
What’s Included?
- N25F with CPU Subsystem
- Pre-integrated N25F, PLIC, Debug Module and simulation-only encrypted Platform
- N25F with AE350 Platform
- N25F with CPU Subsystem, plus AXI/AHB Platform
Specifications
Identity
Part Number
AndesCore™ N25F
Vendor
Andes Technology Corp.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
R.O.C
