AXI 5-Master Component Low-Latency SRAM Controller
The AXI 5-Master component SRAM Controller provides 5 AXI 64-bit Master components with low-wait-state access to a single interna…
Overview
The AXI 5-Master component SRAM Controller provides 5 AXI 64-bit Master components with low-wait-state access to a single internal 64-bit SRAM resource. It supports low-latency operation by providing access to any memory location within one clock cycle.
The controller decreases latency and improves the throughput for up to 5 Master components accessing a common memory by supporting simultaneous Read/Write access. To achieve this improvement, the memory block is divided into 64-bit segments Access to each memory segment by any of the 5 AXI Master components is arbitrated so that incrementing or wrapping bursts from a given Master component - the most common types of AXI burst - will not lock out other master components from accessing a given slice for the duration of a burst.
Key features
- Allows 5 AXI Master components to access a common 64-bit SRAM
- CPU Master component has priority
- Other 4 Master components have equal priority
- SRAM divided into 4 separate slices
- Low Latency with zero or one cycle access
- Fast Arbitration

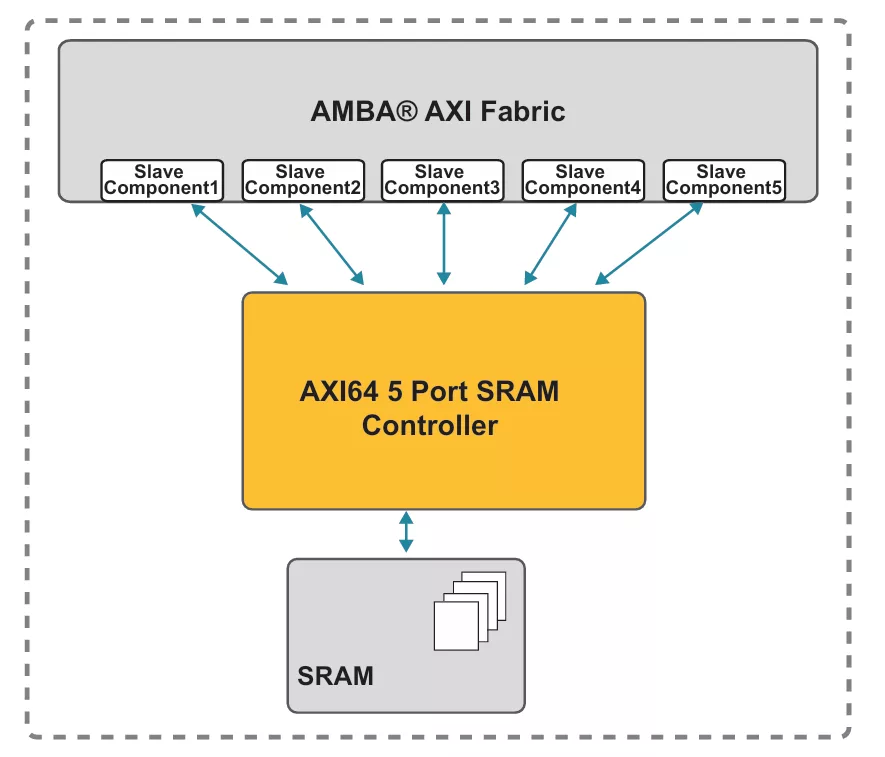

Block Diagram
AXI 5-Master Component Low-Latency SRAM Controller block diagram
What’s Included?
- Verilog Source
- Complete Test Environment
- Technical Datasheet and Test Document
- AXI Bus Functional Model
Specifications
Identity
Part Number
AXI 5-Master Component Low-Latency SRAM Controller
Vendor
Silvaco, Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
United States
