Vendor: Arm Ltd. Category: CPU

Arm Cortex-A73

The Arm® Cortex®-A73 is the most-efficient high-performance processor that implements the Armv8-A architecture.

Contact Provider Request Datasheet
ARM View all specifications

Overview

The Arm® Cortex®-A73 is the most-efficient high-performance processor that implements the Armv8-A architecture. The Cortex-A73 processor can be paired with the Cortex-A53 or Cortex-A35 processor in a big.LITTLE configuration for mobile applications. The Cortex-A73 processor cluster has one to four cores, each with their L1 instruction and data caches, together with a single shared L2 unified cache.

Key features

  • Efficient Out-of-Order Pipeline - Microarchitecture performance and power improvements to maximize efficiency of the 2-wide out-of-order pipeline. Achieve highest peak and sustained performance at frequencies up to 2.8GHz in advanced process technology for Premium smartphones.
  • State-of-the-art Branch Prediction and Power-Optimized Instruction Fetching - Advanced sophisticated prediction algorithm with power-optimized 64kB instruction cache.
  • High-performance Memory System - Full out-of-order dual-issue load/store capability combined with up to 64kB data cache. Enhanced data prefetching with automatic complex pattern detection.
  • Optimized mobile and consumer feature set - Combined with Cortex-A53 or Cortex-35 in big.LITTLE configuration using Arm CCI interconnect for high scalability.

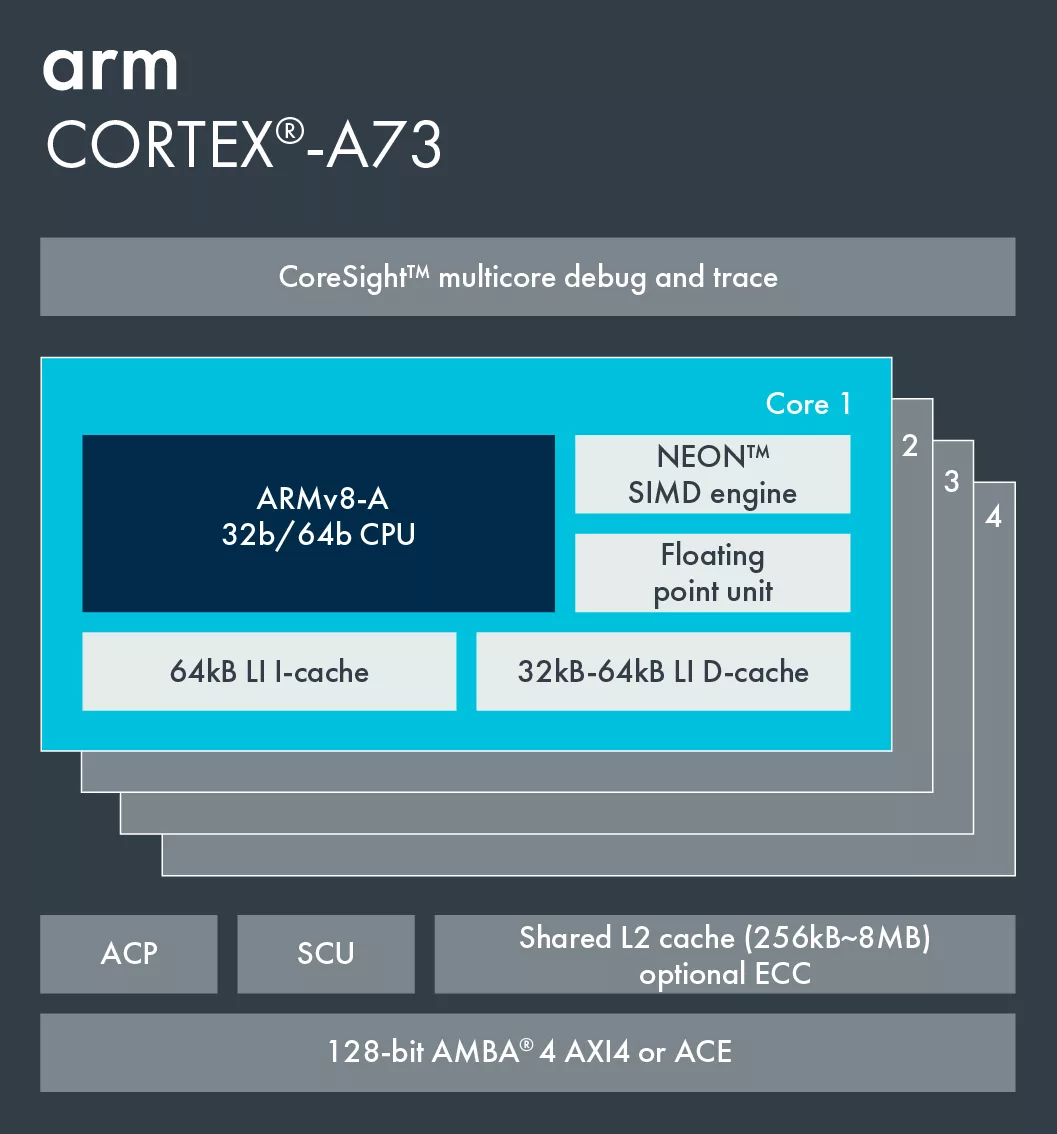

Block Diagram

Arm Cortex-A73 block diagram

Benefits

  • Highest performance in mobile power envelope. Up to 30% higher performance than previous generation.
  • Up to 2.8GHz frequency for highest peak performance.
  • New levels of sustained usage for the best user experience. Up to 30% increase in power efficiency.
  • Smallest premium Armv8-A processor ever. Premium CPU under 0.65mm² per core.
  • This processor can also be implemented in an Arm big.LITTLE™ configuration, for example with the Cortex-A53 or Cortex-A35 processor.

Applications

  • Premiere to mid-range smartphones
  • Digital TV
  • Over-the-top and set-top box devices
  • Large screen mobile devices
  • Home networking
  • Automotive infotainment

Specifications

Identity

Part Number
Arm Cortex-A73
Vendor
Arm Ltd.
Type
Silicon IP

Compute

CPU Architecture
ARM

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Arm Ltd.
HQ: Great Britain
Contact Arm Ltd.

Learn more about CPU IP core

Announcing Arm AGI CPU: The silicon foundation for the agentic AI cloud era

For the first time in our more than 35-year history, Arm is delivering its own silicon products – extending the Arm Neoverse platform beyond IP and Arm Compute Subsystems (CSS) to give customers greater choice in how they deploy Arm compute – from building custom silicon to integrating platform-level solutions or deploying Arm-designed processors.

Top 5 Reasons why CPU is the Best Processor for AI Inference

Advanced artificial intelligence (AI), like generative AI, is enhancing all our smart devices. However, a common misconception is that these AI workloads can only be processed in the cloud and data center. In fact, the majority of AI inference workloads, which are cheaper and faster to run than training, can be processed at the edge – on the actual devices.

Frequently asked questions about CPU IP cores

What is Arm Cortex-A73?

Arm Cortex-A73 is a CPU IP core from Arm Ltd. listed on Semi IP Hub.

How should engineers evaluate this CPU?

Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this CPU IP.

Can this semiconductor IP be compared with similar products?

Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.

×
