Vendor: Arm Ltd. Category: CPU

Arm Cortex-A7

The Cortex-A7 processor provides up to 20% more single thread performance than the Cortex-A5 and incorporates all features of the…

Contact Provider Request Datasheet
ARM View all specifications

Overview

The Cortex-A7 processor provides up to 20% more single thread performance than the Cortex-A5 and incorporates all features of the high-performance Cortex-A15 and Cortex-A17 processors, including virtualization support in hardware, Large Physical Address Extensions (LPAE), NEON, and 128-bit AMBA 4 AXI bus interface.

Key features

  • In-order 8 stage pipeline - Improved dual issue, branch prediction and memory system performance. It features 64-bit load-store path, 128-bit AMBA 4 AXI buses and increased TLB size (256 entry).
  • Integrated, Configurable Size Level 2 Cache Controller - Provides low-latency and high-bandwidth access to up to 1MB of cached memory in high-frequency designs, or designs needing to reduce the power consumption associated with off-chip memory access. The L2 cache is optional on Cortex-A7.
  • Support Armv7-A extensions - Hardware Virtualization and Large Physical Address Extensions (LPAE) enables the processor to access up to 1TB of memory.
  • big.LITTLE technology - First LITTLE processor architecturally compatible with compatible with Cortex-A15 and Cortex-A17 for various big.LITTLE processor combinations.

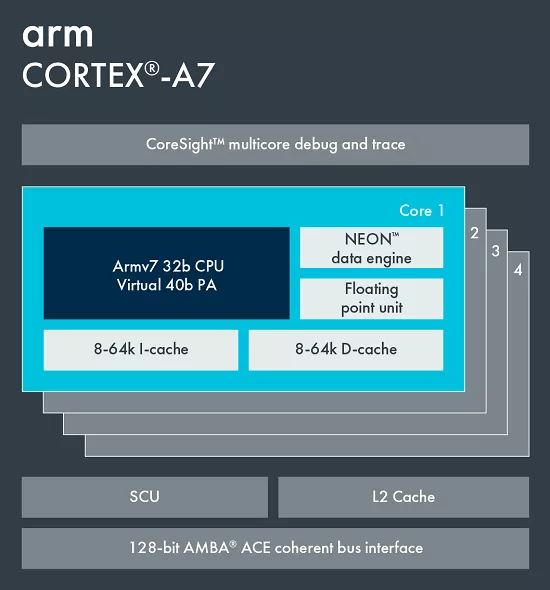

Block Diagram

Arm Cortex-A7 block diagram

Benefits

  • Armv7-A architectural extensions (40-bit physical addressing, hardware virtualization support).
  • More than 20% improvement in single thread integer performance when compared to Cortex-A5.
  • Integrated L2 cache subsystem provides improved area efficiency and up to 43% improvements in memory streaming performance.
  • Proven successful design, suited to the needs of wearable mobile devices and other UI-based consumer products.

Applications

  • Smartwatch
  • Single board computers (SBCs)
  • Wearables
  • Wired and wireless networking
  • IoT - rich nodes
  • Network infrastructure

Specifications

Identity

Part Number
Arm Cortex-A7
Vendor
Arm Ltd.
Type
Silicon IP

Compute

CPU Architecture
ARM

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Arm Ltd.
HQ: Great Britain
Contact Arm Ltd.
