65nm 10bit 250MSPS DAC
The L6GDA10B054M is a 10-bit, current-output digital-to-analog converter(DAC), which was designed with a 65nm 1P6M CMOS technolog…
Overview
The L6GDA10B054M is a 10-bit, current-output digital-to-analog converter(DAC), which was designed with a 65nm 1P6M CMOS technology.
The L6GDA10B054M has current steering architecture with differential outputs. It uses 4 linear bits and 6 binary bits, all of which are generated from within the current source array. This results in reduced glitch energy and non-linearity error at the output.
The L6GDA10B054M operates with analog power supply ranging from 3.0V to 3.6V, and its output range covers from 0V to 1.4V. The DAC features the sampling rate of 250MHz over industrial temperature range (-40 ℃ to +85℃) and occupies the core cell area of 0.083mm^2.
The L6GDA10B054M has current steering architecture with differential outputs. It uses 4 linear bits and 6 binary bits, all of which are generated from within the current source array. This results in reduced glitch energy and non-linearity error at the output.
The L6GDA10B054M operates with analog power supply ranging from 3.0V to 3.6V, and its output range covers from 0V to 1.4V. The DAC features the sampling rate of 250MHz over industrial temperature range (-40 ℃ to +85℃) and occupies the core cell area of 0.083mm^2.
Key features
- 65nm 1P6M CMOS technology
- 10-bit resolution
- Maximum 250MHz conversion rate
- 3.3V analog power supply
- 1.2V digital power supply
- Output load : 75Ohm
- Current consumption : 28mA
- DNL / INL : ±0.5 /±1.0 LSB
- Power-down current : < 1uA
- Core cell area : 0.083mm2

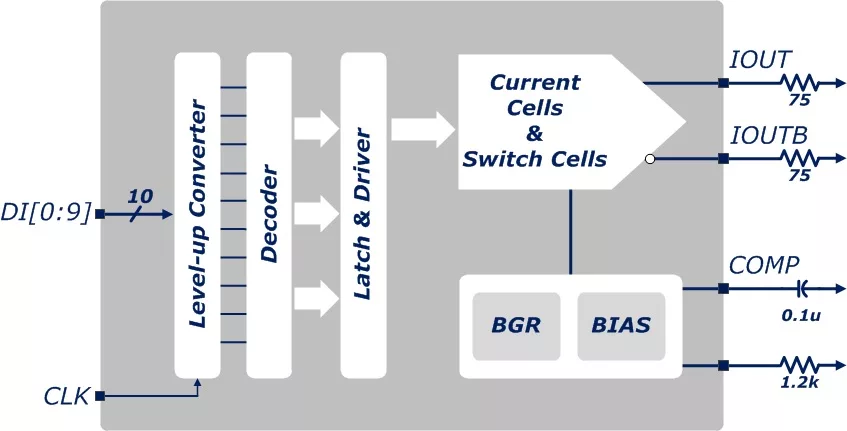

Block Diagram
L6GDA10B054M block diagram
Benefits
- Low power
- Low area
- Wide output range
- High performance
Applications
- Arbitrary waveform generators (AWGs)
- Direct digital synthesis
- Imaging applications
- LCD contrast and backlight brightness control
- Power supply voltage adjustment
What’s Included?
- Datasheet, Verilog DB, GDS, CDL, Phantom Cell, Test Spec, sample
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 65nm | 6LPe | — |
Specifications
Identity
Part Number
L6GDA10B054M
Vendor
LeoLSI
Type
Silicon IP
Analog
Resolution bits
10 Bit
Provider
HQ:
Korea
