AndesCore™ AX25MP 64-bit multicore CPU IP is based on AndeStar™ V5 architecture.
Overview
AndesCore™ AX25MP 64-bit multicore CPU IP is based on AndeStar™ V5 architecture. It supports RISC-V standard 'IMAC-FD' extensions, Andes contributed DSP/SIMD 'P' extension (draft), user-level interrupt 'N' extension, and Andes performance/ functionality enhancements such as instructions for faster memory accesses, faster branch handling, and Andes Custom Extension™ (ACE) to add user-defined instructions. It features MMU for Linux based applications, branch prediction for efficient branch execution, level-1 instruction/data caches and local memories for low-latency accesses.
The AX25MP symmetric multiprocessor supports up to 4 cores and a level-2 cache controller with instruction and data prefetch. Andes Coherence Unit (ACU) manages level-1 cache coherence, including I/O coherence for cacheless bus masters, and duplicated L1 tag to screen allocated lines for snoop queries. Other AX25MP features include ECC for level-1/2 memory soft error protection, Platform-Level Interrupt Controller (PLIC) with enhancements for vectored dispatch and priority-based preemption, CoDense™, StackSafe™ for software quality improvement, and QuickNap™, PowerBrake, and WFI for power management.
Key Features and Performance
AndeStar™ V5 Architecture
| Key Features | Benefits |
|---|---|
| RISC-V RV64IMACFDBP instructions |
|
| 64-bit CPU architecture | Enabling software to utilize the memory spaces far beyond the 4G byte limit of 32-bit CPUs |
| RISC-V P-extension (draft) DSP/SIMD instructions with versatile operations | Boost the performance of voice, audio, image and signal processing |
| RISC-V single and double precision floating point instruction | Accelerate the processing of high precision arithmetic |
| RISC-V bit-manipulation instructions, including the Zba, Zbb, Zbc and Zbs extensions | Benefits codes with bit-wise operations |
| Andes Extended Instructions | Andes exclusive performance and functionality enhancements |
| Andes Custom Extension™ (ACE) option to create customized instructions for software acceleration |
|
| 16/32-bit mixable instruction format | For compact code density |
| 32 general-purpose registers | For better code size and performance |
| Machine (M), User (U) and Supervisor (S) Privilege levels | For Linux and advanced operating systems with protection between kernel and user programs |
CPU Core
| Key Features | Benefits |
|---|---|
| 3.55 Coremark/MHz, 2.14 DMIPS/MHz* | Superior performance-per-MHz |
| 5-stage pipeline, with a full-cycle reserved for critical SRAM accesses | Superior performance-efficiency, while allowing for high speeds |
|
Extensive branch prediction features
|
|
|
Memory Management Unit
|
|
| Physical Memory Protection (PMP), 16 regions | Basic read/write/execute memory protection with minimum cost |
| Performance monitors | Program code performance tuning |
| StackSafe™ hardware stack protection |
|
|
Multiplier options
|
Option to choose between speed and area according to application's requirements |
| PowerBrake technology | Performance throttling to digitally reduce power consumption |
* AndeSight v500, DMIPS/MHZ follow Dhrystone’s no-inline ground rules, best performances
Memory Subsystems
Platform-Level Interrupt Controller (PLIC)
| Key Features | Benefits |
|---|---|
|
Implements RISC-V PLIC specification
|
Allow individual interrupts to be serviced and prioritized without sharing |
|
Enhanced interrupt features
|
|
Debug Support
| Key Features | Benefits |
|---|---|
| Implements RISC-V debug specifications | Supported by industry debug tool suppliers |
| JTAG Debug Port | Industry-standard support |
| Embedded Debug Module with up to 8 triggers | Flexible configurations to tradeoff between gate count and debugging capabilities |
| Exception redirection support | Entering debugger upon selected exceptions without using breakpoints |
| Key Features | Benefits |
|---|---|
|
Level-1 I-Cache & D-Cache
|
|
|
ILM & DLM
|
|
| Soft-error protection: ECC or parity for I-Cache and D-Cache, ILM and DLM with SRAM interface | Code and data integrity protection |
|
Level-2 cache
|
|
|
Multicore Cache Coherence
|
|
| Bus manager port: AXI 64 or 128-bit data, 32 to 64-bit address | User-selectable bus interface for optimal efficiency |
| Bus subordinate port: AHB with 64-bit data, for ILM/DLM accesses | Efficient data transfer between CPU and SoC managers |
| Core/bus clock ratio of N:1 | Simplified SoC integration |
Key features
- Symmetric multiprocessing up to 4 cores
- Level-2 cache and cache coherence support
- AndeStar™ V5 Instruction Set Architecture (ISA). Compliant to RISC-V ISA IMACFDN, with Andes performance/functionality extensions
- Floating point extension DSP/SIMD ISA to boost the performance of voice, audio, image and signal processing
- Separately licensable Andes Custom Extension™ (ACE) for customized acceleration
- 64-bit architecture for memory space over 4GB
- 16/32-bit mixable instruction format for compacting code density
- Branch predication to speed up control code
- Return Address Stack (RAS) to speed up procedure returns
- Memory Management Unit (MMU) and Physical Memory Protection (PMP)
- Flexibly configurable Platform-Level Interrupt Controller (PLIC) for supporting wide range of system event scenarios
- Enhancement of vectored interrupt handling for real-time performance
- Advanced CoDense™ technology to reduce program code size
Block Diagram

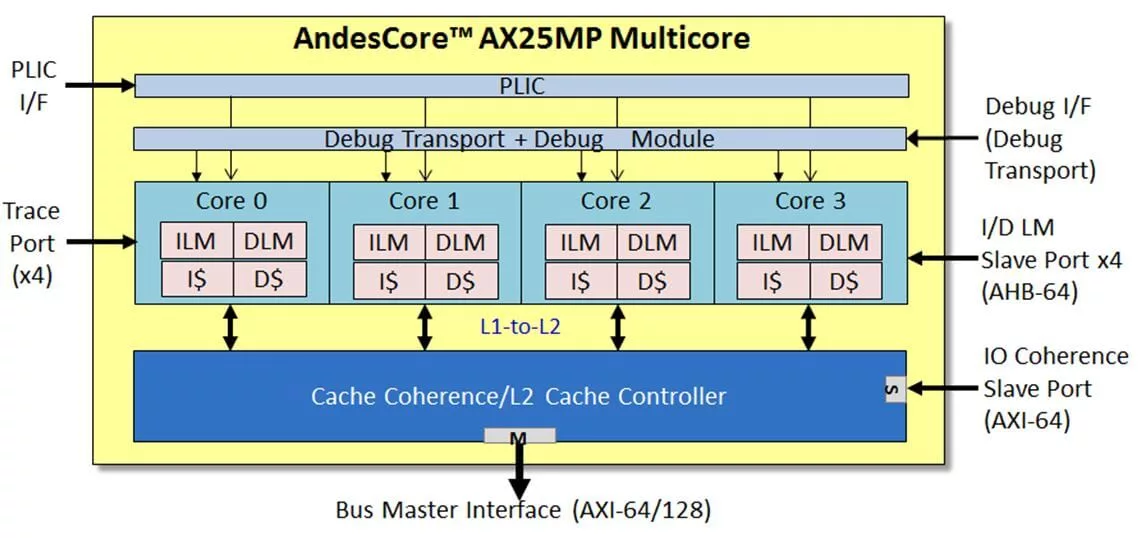

AndesCore™ AX25MP block diagram
Applications
- Machine/Deep learning acceleration
- High performance solid state drives
- Large-scale network controllers
- Industrial Automation
Specifications
Identity
Part Number
AndesCore™ AX25MP
Vendor
Andes Technology Corp.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
R.O.C
Learn more about CPU IP core
