6-bit, 5 GSPS DAC - GlobalFoundries, 22FDX
The D6B5G is ultra-low power, high-speed digital to analog converter (DAC) intellectual property (IP) block.
Overview
The D6B5G is ultra-low power, high-speed digital to analog converter (DAC) intellectual property (IP) block. It has a 6-bit resolution, and a sampling speed of 5 gigasamples per second (GSPS).
The D6B5G is a unique solution that provides the dual benefit of reaching an extremely high sampling speed while maintaining an exceptionally low power consumption of only 16 mW, making it a perfect fit for designs with high efficiency, low power and high performance requirements.
The IP block has been designed and verified for the GF22FDX fabrication process with FDSOI technology to provide superior performance/power specifications.
The DAC IP is also available in a radiation-tolerant version, that can function under harsh environmental constraints.
Key features
- 6-bit Resolution
- 5 GSPS Sampling Rate
- 16 mW Power Consumption
- 6 GHz Input Bandwidth
- Static Performance:
- DNL: ± 0.5 LSB
- INL: ± 0.3 LSB
- Dynamic Performance:
- SFDR: 43 dBc
- SNDR: 35 dB
- ENOB: 5.5 bits
- Area: 464 um x 242 um
- Hard IP block
- Radiation-tolerant design available: D6B5GRH
Block Diagram

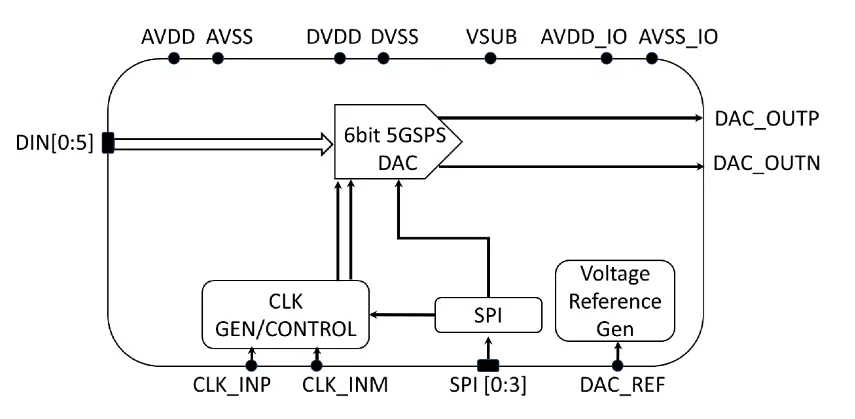

D6B5G-GF22 block diagram
Benefits
- Save time-to-market with our ready-to-go complete product solutions for your commercial or radiation tolerant specifications demands. Our IP uses the latest technology nodes for easy integration, or upon request, can be ported to other nodes.
- Our IC project teams will become an extension of your system development group, allowing you to focus on your overall end products.
Applications
- Wideband Communications and Networking:
- Microwave Receivers
- Radar and Satellite Communications
- C-band Satellite Services
- 5G Telecommunications
- Electronic Warfare:
- Software-defined Radio
- Automated Test equipment
What’s Included?
- Foundry Qualification Underway
- Layout View (gds2)
- Integration Support
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
D6B5G-GF22
Vendor
Alphacore, Inc.
Type
Silicon IP
Analog
Resolution bits
6 Bit
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
