40G UDPIP offload engine
The core Implements a UDP/IP hardware protocol stack that enables wire-speed communication over a LAN or a point-to-point connect…
Overview
The core Implements a UDP/IP hardware protocol stack that enables wire-speed communication over a LAN or a point-to-point connection. It is ideal for offloading the host processor from the demanding task of UDP/IP and can be used in both FPGA and ASIC designs.
Key features
- 40G Ethernet; IPv4 support;
- Transmit and Receive; Five RX ports with 32 RXchannels and Five TX ports with 32TX channels supported;
- ARP client/server with 32 entry ARP table;
- ICMP (Ping Reply);
- IGMP v3 membership Query/Report messaging;
- UDP/IP Unicast and Multicast;
- UDP Port Filtering;
- 801.1Q tagging for VLAN support
- UDP/IP Checksum calculation and validation
- DHCP client
- Flexible packet data interface with 128-bit and 64-bit data with configurable streaming capable using AXI4-Stream; Control/Status interface.

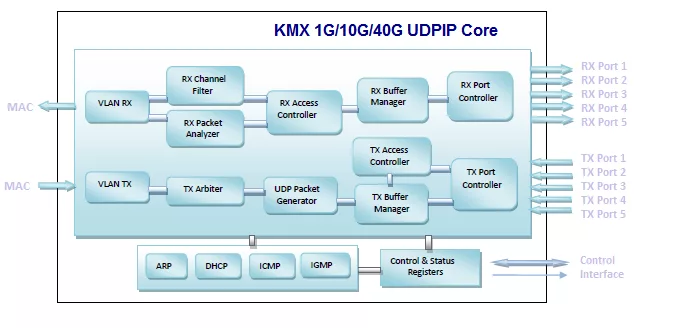

Block Diagram
UDPIP-40G-KMX block diagram
Benefits
- Great reliability and high performance
- Effectively offload CPU
Applications
- data center
- video stream
- data processing
What’s Included?
- 40G UDPIP Core netlist file
- 40G MAC/PCS VHDL source
- Reference design VHDL source
- Testbench VHDL source
Specifications
Identity
Part Number
UDPIP-40G-KMX
Vendor
KMX Embedded Core
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Canada
