32-Bit Security processor
Nuclei Security processor is a series of chips designed specifically for security application scenarios, including NS100, NS300, …
Overview
Nuclei Security processor is a series of chips designed specifically for security application scenarios, including NS100, NS300, and NS600 products.
NS100 vs NS300 vs NS600
| Security Features | NS100 | NS300 | NS600 |
| Data Parity Protection | Yes | Yes | Yes |
| Datapath Polarity | Yes | Yes | Yes |
| Core Key Status Lock | Yes | Yes | Yes |
| Core Key Status Clear | Yes | Yes | Yes |
| Secure Status Monitor | Yes | Yes | Yes |
| Consistent Instruction Execution Latency | Yes | Yes | Yes |
| Vectored Interrupt Remapping | Yes | Yes | Yes |
| Secure Debug | Yes | Yes | Yes |
| Instruction Execution Monitor Interface | Yes | Yes | Yes |
| Value Write-back to Junk Register | Yes | Yes | |
| Random Instruction Injection | Yes | Yes | |
| Architectural Clock Gate Override | Yes | Yes | |
| Power Scrambling on Idle Function Unit | Yes | Yes | |
| MPU | Yes | Yes | |
| Stack Check | Yes | Yes |
Key features
NS100 Single Core Configuration Features
- RISC-V RV32I(E)MC/Zc ISA supported
- Single Issue, in-order 2 stage Harvard Pipeline
- Configurable single cycle and multiple cycle Multiplier
- 32 AHB-Lite/ICB system bus
- Machine mode
- Configurable interrupt controller
- Full Standard Debug Function with JTAG/cJTAG Port
NS300 Single Core Configuration Features
- RISC-V RV32IMACFDB ISA supported
- In-order 3-stage Harvard Pipeline
- Single/Dual Issue
- Double and Single Precision floating point
- Configurable ILM (Instruction Local Memory)
- Configurable DLM(Data Local Memory) with ECC
- Configurable I-Cache & D-Cache with ECC, 512B-64KB
- Configurable 32b AHB-Lite system bus
- Configurable 32-bit AHB slave port
- Besides Machine mode & User mode, Supervisor mode is suppored for TEE (Trust Execution Environment)
- Configurable NICE Interface for User-Defined Extensions
- Configurable ECLIC
- Full Standard Debug Function with JTAG/cJTAG Port
NS600 Single Core Configuration Features
- RISC-V RV32IMACF ISA supported
- In-order 6 stage Harvard Pipeline
- Single-Precision floating point
- Configurable ILM (Instruction Local Memory)
- Configurable DLM0/DLM1 (Data Local Memory) with ECC
- Configurable I-Cache with ECC, 16-64KB
- Configurable D-Cache with ECC, 16-64KB
- Configurable 64b AXI system bus
- Configurable 64-bit AXI slave port
- Besides Machine mode & User mode, Supervisor mode is suppored for TEE (Trust Execution Environment)
- Configurable ECLIC
- TEE supported
- Full Standard Debug Function with JTAG/cJTAG Port

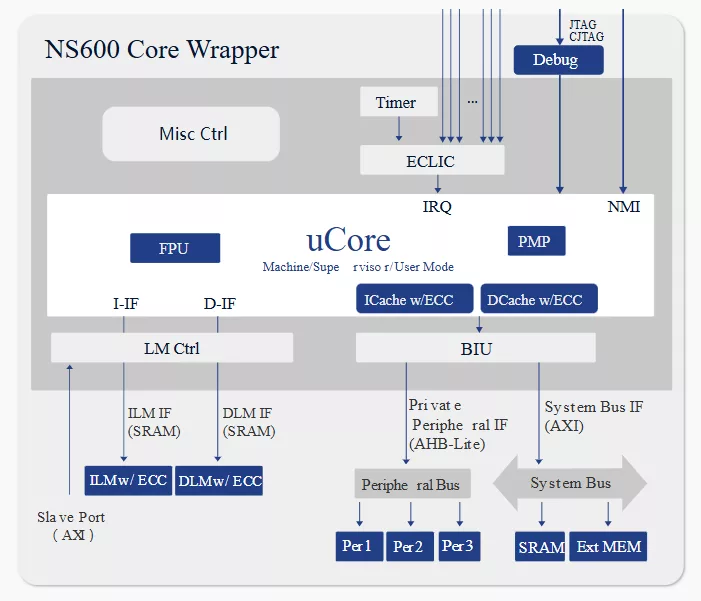

Block Diagram
NS block diagram
Benefits
- Ultra-LowPower
- RV32I/EMC/Zc
- 2 Stage Pipeline
- Machine-Mode
- AHB-Lite
- Multiplier-divider
- RISC-V Standard Debug
- JTAG & cJTAG
- Low Latency Interrupt
- Full Development Toolkit
Specifications
Identity
Part Number
NS
Vendor
Nuclei System Technology
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
China
