32-bit RISC-V embedded core with in-order single issue pipeline
32-bit RISC-V embedded core with in-order single issue pipeline.
Overview
32-bit RISC-V embedded core with in-order single issue pipeline.
Optimized for low power and small area. Perfectly fits for embedded control.
Optimized for low power and small area. Perfectly fits for embedded control.
Key features
- Configurable instruction set architecture:
- 32-bit RISC-V with 32 integer registers (I extension)
- Integer multiplication and division (M extension)
- Atomic operation support (A extension)
- Compressed mode for better code density (C extension)
- IEEE 754-2008 compliant single precision floating point (F extension)
- IEEE 754-2008 compliant double precision floating point (D extension)
- User mode interrupt handlers (N extension)
- Bit manipulation instructions support (B extension)
- Scalar cryptography instructions support (K extension)
- Digital signal processing instructions support (P extension)
- ECC memory protection (SEC-DED)
- Physical memory protection
- Integrated debug controller including HW breakpoints
- System bus access
- Compact JTAG support
- Trace support
- Power management support
- AXI/AHB configurable interfaces
- Performance
- 1.7 DMIPS/MHz
- 3.29 CoreMark/MHz
- Frequency
- 1.2 GHz (TSMC, 28nm HPC+, SSG corner)

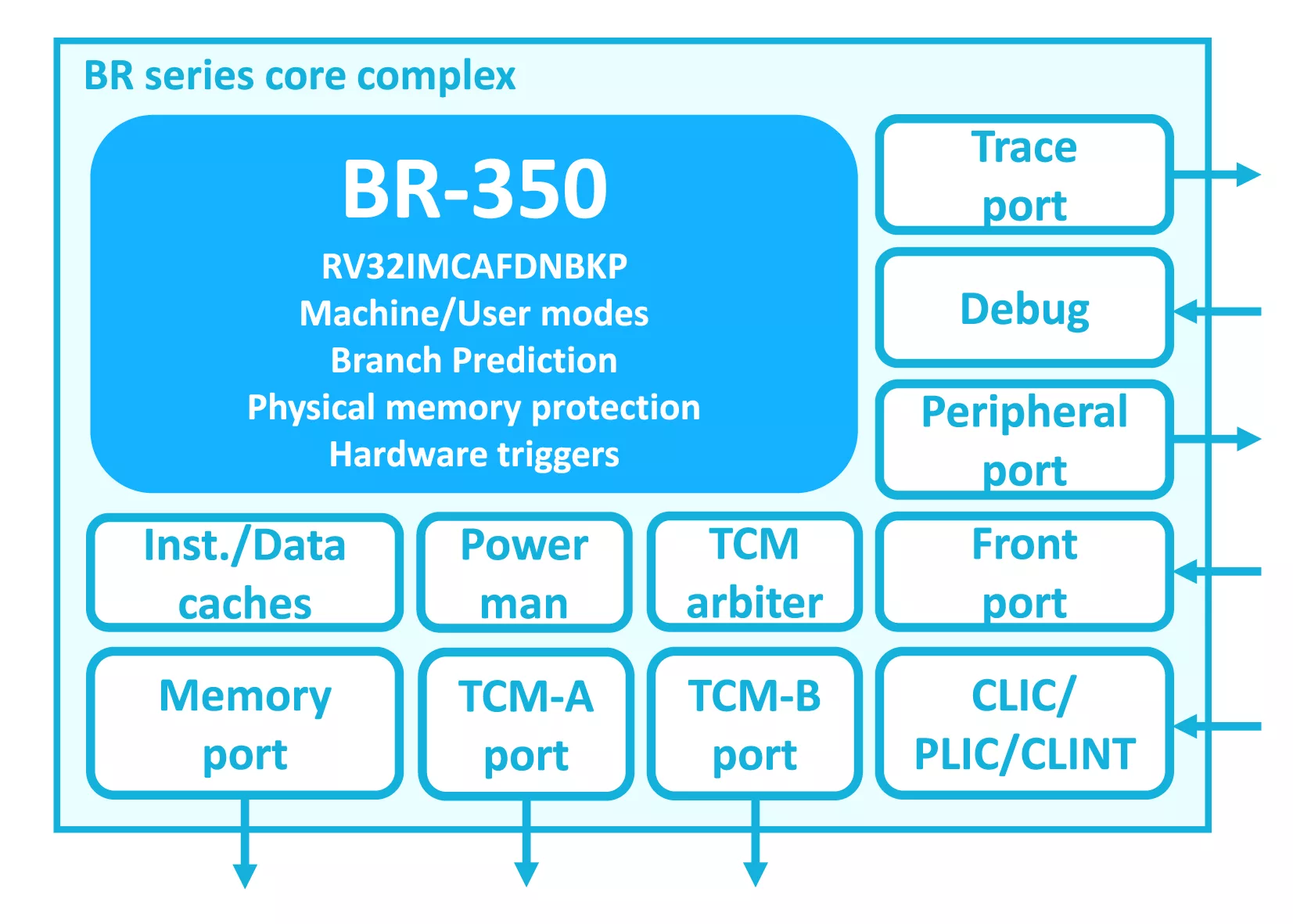

Block Diagram
BR-350 block diagram
Specifications
Identity
Part Number
BR-350
Vendor
CloudBEAR, LLC
Type
Silicon IP
Compute
CPU Architecture
RISC-V
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Russia
