Vendor: Nuclei System Technology Category: CPU

32-Bit Low Power Processor - 2-Stage Pipeline, Single-issue

N200 Series is designed for deeply embedded application with low power and area consumption.

Overview

N200 Series is designed for deeply embedded application with low power and area consumption.

Key features

  • Support RV32I/EMACB/Zc ISA.
  • 2-stage pipeline, optimized micro-archtecture for power, area & cost efficiency.
  • Support fast interrupt tail-chaining mechanism, vectored interrupt processing
    mode for extremely fast interrupt response, and interrupt preemptions based
    on interrupt levels.
  • Configurable ILM (Instruction Local Memory) and
    DLM (Data Local Memory) with ECC
  • Configurable Instruction-Cache
  • Support NICE.
  •
  • Full Standard Debug Function with JTAG/cJTAG port.
  • Full Standard RISC-V Toolchain, and Linux/Windows IDE supported

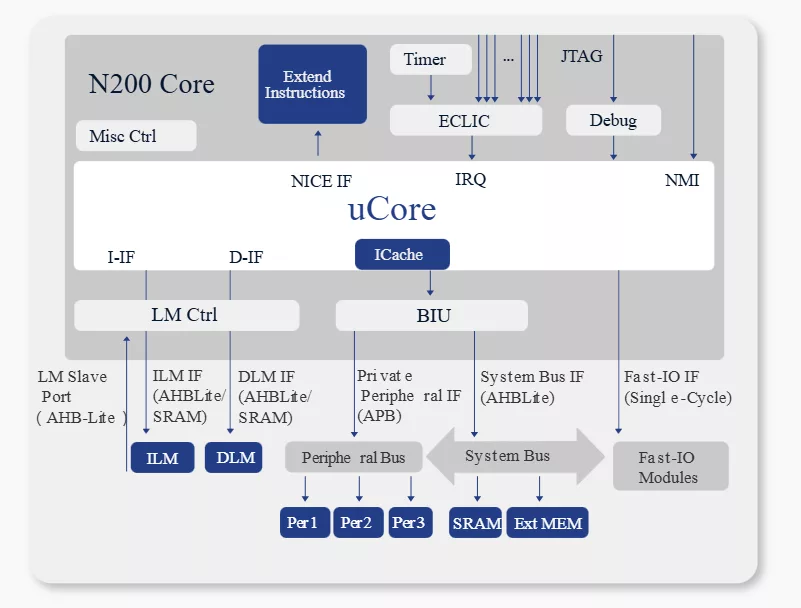

Block Diagram

200 Series block diagram

Benefits

  • Low Power
  • RV32I/EMACB/Zc
  • 2-Stage Pipeline
  • Machine, User, Supervisor-Mode
  • Security(PMP, TEE)
  • AHB-Lite
  • RISC-V Standard Debug
  • JTAG & cJTAG
  • Low Latency Interrupt
  • Full Development Toolkit

Specifications

Identity

Part Number
200 Series
Vendor
Nuclei System Technology
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
