32-Bit High Performance Processor - 2-Stage Pipeline, Single-issue
With extreme low area, N100 is a 32b RISC-V processor designed specifically for low power application.
Overview
With extreme low area, N100 is a 32b RISC-V processor designed specifically for low power application. N100 aims for cost sensitive application including IoT, MCU, sensor.
100 Series Performance and Configurability
| Nuclei CPU IP | N100 | ||
| Pipeline Stages | 2 | ||
| Issue-Width | Single-Issue | ||
| Hardware Multiplier | Configurable | ||
| Hardware Divider | Configurable | ||
| RISC-V ZC Extension | Configurable | ||
Key features
- Support RV32I/EMC/Zc ISA.
- 2-stage pipeline, extremely optimized micro-archtecture for low power and area.
- Configurable single cycle and multiple cycle Multiplier
- 32 Bits AHB-Lite system bus
- Configurable Divider
- Machine mode
- Configurable IRQC
- Full Standard Debug Function with JTAG/cJTAG port.
- Full Standard RISC-V Toolchain, and Linux/Windows IDE supported

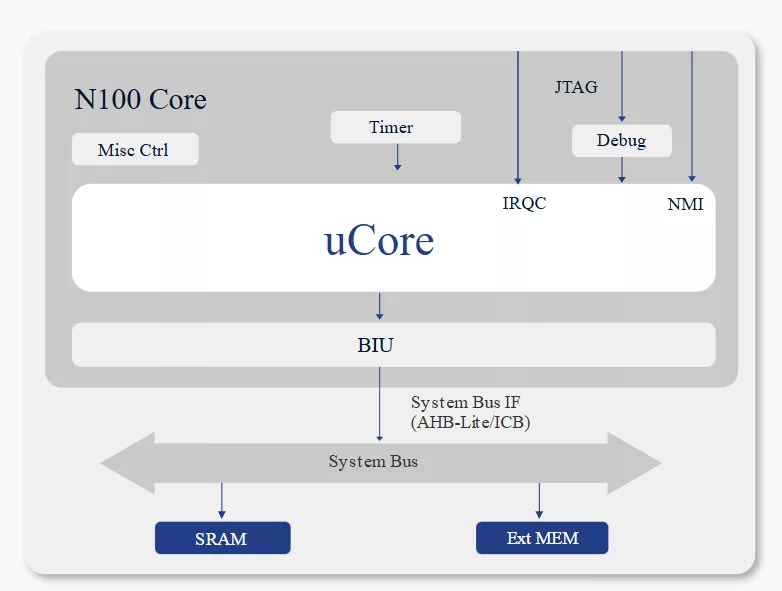

Block Diagram
100 Series block diagram
Benefits
- Ultra-LowPower
- RV32I/EMC/Zc
- 2 Stage Pipeline
- Machine-Mode
- AHB-Lite
- Multiplier-divider
- RISC-V Standard Debug
- JTAG & cJTAG
- Low Latency Interrupt
- Full Development Toolkit
Specifications
Identity
Part Number
100 Series
Vendor
Nuclei System Technology
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
China
