12-bit, 8 GSPS High Performance DAC in 16nm CMOS
The ODT-DAC-12B8G-16 is a highperformance current steering 12-bit DAC that operates at an update rate of up to 8GSPS.
Overview
The ODT-DAC-12B8G-16 is a highperformance current steering 12-bit DAC that operates at an update rate of up to 8GSPS. The DAC uses a proprietary architecture that reduces harmonic and intermodulation distortions at high output frequency and amplitudes.
The high-performance DAC supports a peak CW output power of 0dBm and achieves up to -153dBm/Hz noise spectral density with excellent SFDR.
The DAC is powered by a 1.8V and 1.2V analog supply, a 2.1V output supply and a 0.8V digital supply.
Key features
- 16nm CMOS
- 12-bit resolution
- 8GSPS update rate
- 0dBm CW output power
- Differential 20mA current (sink) output
- 3GHz output bandwidth
- -153dBm/Hz noise spectral density
- 63dBc SFDR at FO=1.7GHz, -1dBFS
- Embedded direct digital synthesis (DDS) module
- Functional from -40°C to 125°C

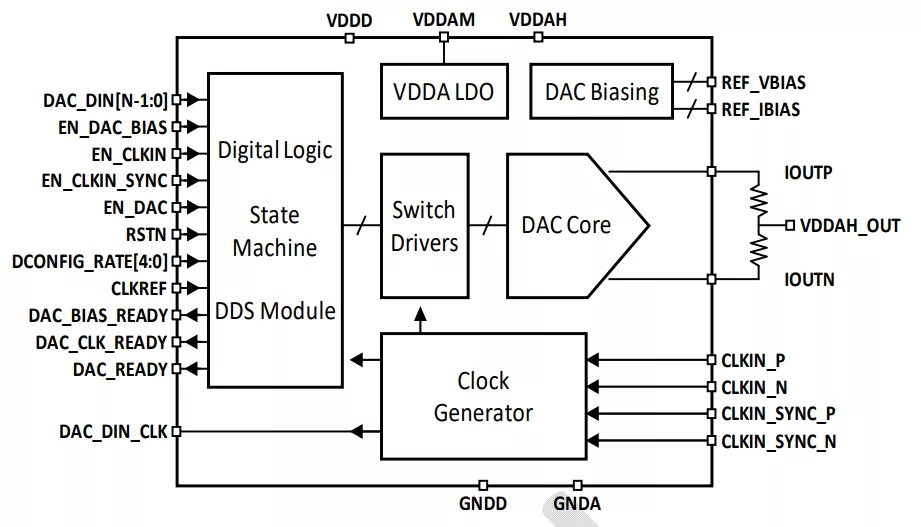

Block Diagram
ODT-DAC-12B8G-16 block diagram
Applications
- General purpose software defined radio
- DOCSIS transmitter
- Cellular base station
- Broadband communications
- Wideband satellite transmitter
What’s Included?
- Datasheet
- Hard GDS Database (GDSII)
- Characterization Report (as applicable)
- Abstract View (LEF) for top level connectivity
- Spectre Netlist (as needed upon request)
- Behavioral Model (as appropriate)
- Integration and Customer Support
Specifications
Identity
Part Number
ODT-DAC-12B8G-16
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP
Analog
Resolution bits
12 Bit
Provider
HQ:
USA
