12-bit, 10 GSPS DAC - GlobalFoundries GF22FDX
The D12B10G is an ultra-low power, high-speed digital to analog converter (DAC) intellectual property (IP) block.
Overview
The D12B10G is an ultra-low power, high-speed digital to analog converter (DAC) intellectual property (IP) block. It is a 12-bit current steering DAC with maximum sampling rate of 10 gigasamples-per-second (GSPS).
An internal 50-ohm resistor load converts the DAC current to a voltage output. The register- programmable output common mode can be set in the range of 1.5V - 1.7V.
The D12B10G is a unique solution that provides the dual benefit of reaching an extremely high bandwidth while maintaining a low power consumption making it a perfect fit for designs with high efficiency, low power and high performance requirements.
The advanced IP block is has been designed and verified for the GF22FDX fabrication process with FDSOI technology to provide superior performance/power specifications.
The DAC IP is also available in a radiation-tolerant version that can function under harsh environmental constraints.
Key features
- 12-bit resolution
- 10 GSPS sampling rate
- 5 GHz Input Bandwidth
- 180 mW power
- Dynamic Performance:
- SFDR: 62.0 dBc
- SNDR: 56.0 dB
- ENOB: 9.0
- Radiation-tolerant design available: D12B10GRH
Block Diagram

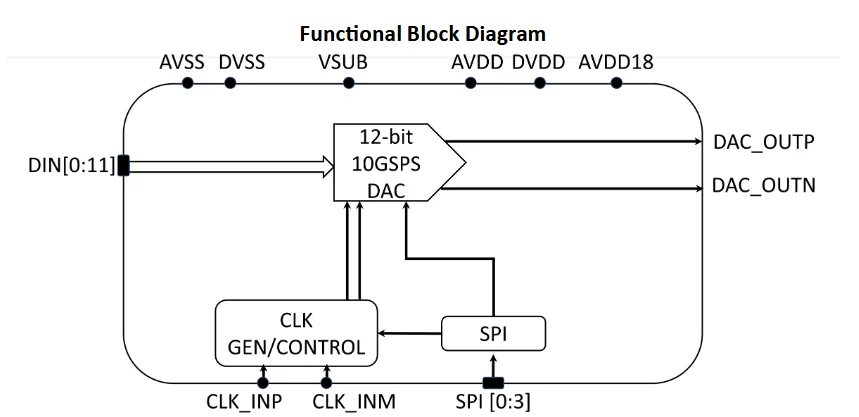

D12B10G-GF22 block diagram
Benefits
- Save time-to-market with our ready-to-go complete product solutions for your commercial or radiation tolerant specifications demands. Our IP uses the latest technology nodes for easy integration, or upon request, can be ported to other nodes.
- Our IC project teams will become an extension of your system development group, allowing you to focus on your overall end products.
Applications
- Wideband Communications and Networking
- Microwave Receivers
- Radar
- Satellite Communications
- 5G Telecommunications
- Electronic Warfare
- Software-defined Radio
- Automated Test Equipment
What’s Included?
- Verified Design Report
- Layout View (gds2)
- Integration Support
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | — |
Specifications
Identity
Part Number
D12B10G-GF22
Vendor
Alphacore, Inc.
Type
Silicon IP
Analog
Resolution bits
12 Bit
